Requirement Confirmation
Confirm product samples, dimensions, material and target output before order.
High-Speed Vertical Double Station Carton Erecting Machine CH-2000D
High-Speed Vertical Double Station Carton Erecting Machine
Designed for high-volume production of fast-food cartons and irregular-shaped boxes.Vertical double-station design delivers faster and more efficient carton forming.Extended feeding and high-capacity collection support longer continuous operation.Automated forming and collecting significantly reduce manual labor requirements.

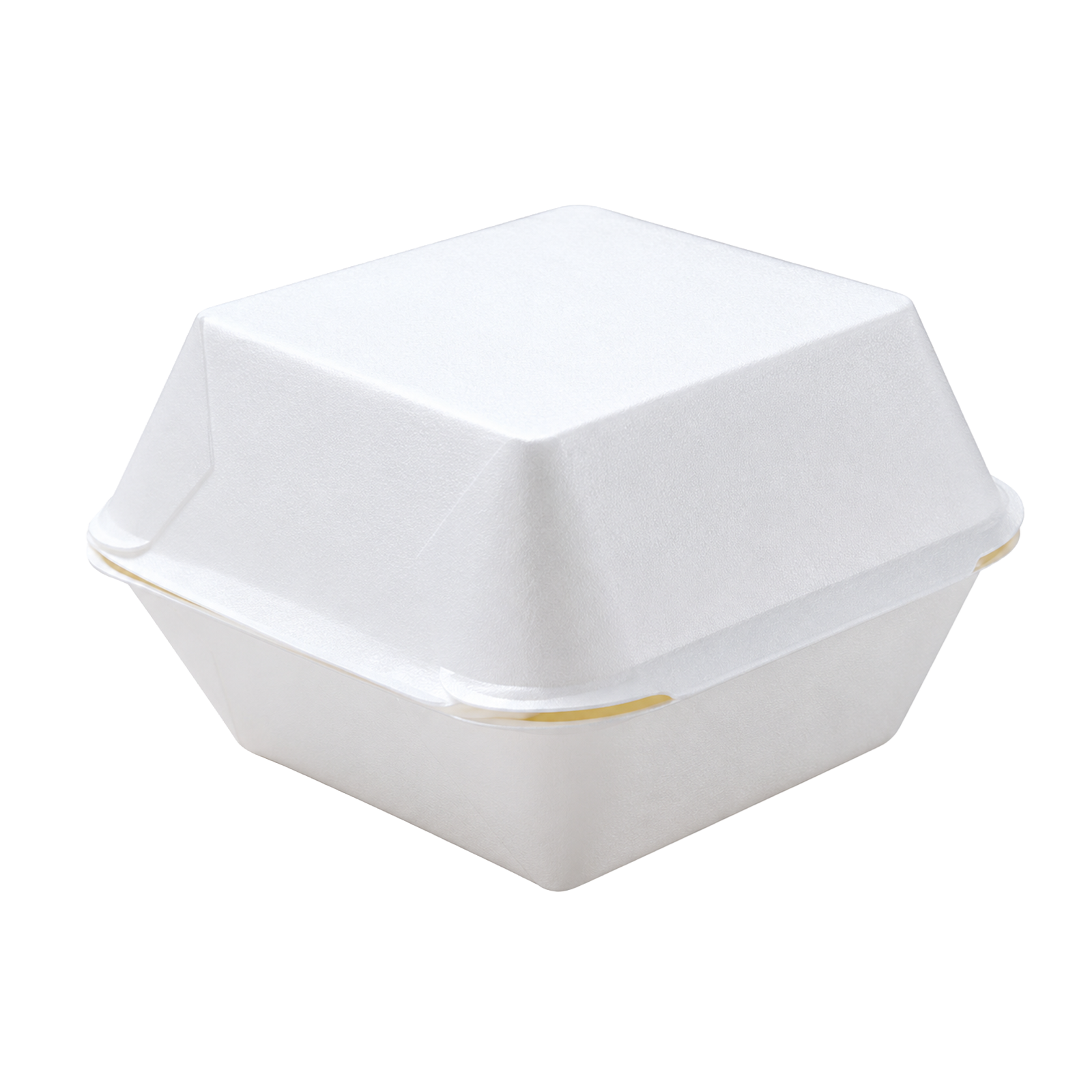

Products this machine can make
Send your product photo, dieline or sample. We will confirm the suitable mold and machine configuration.

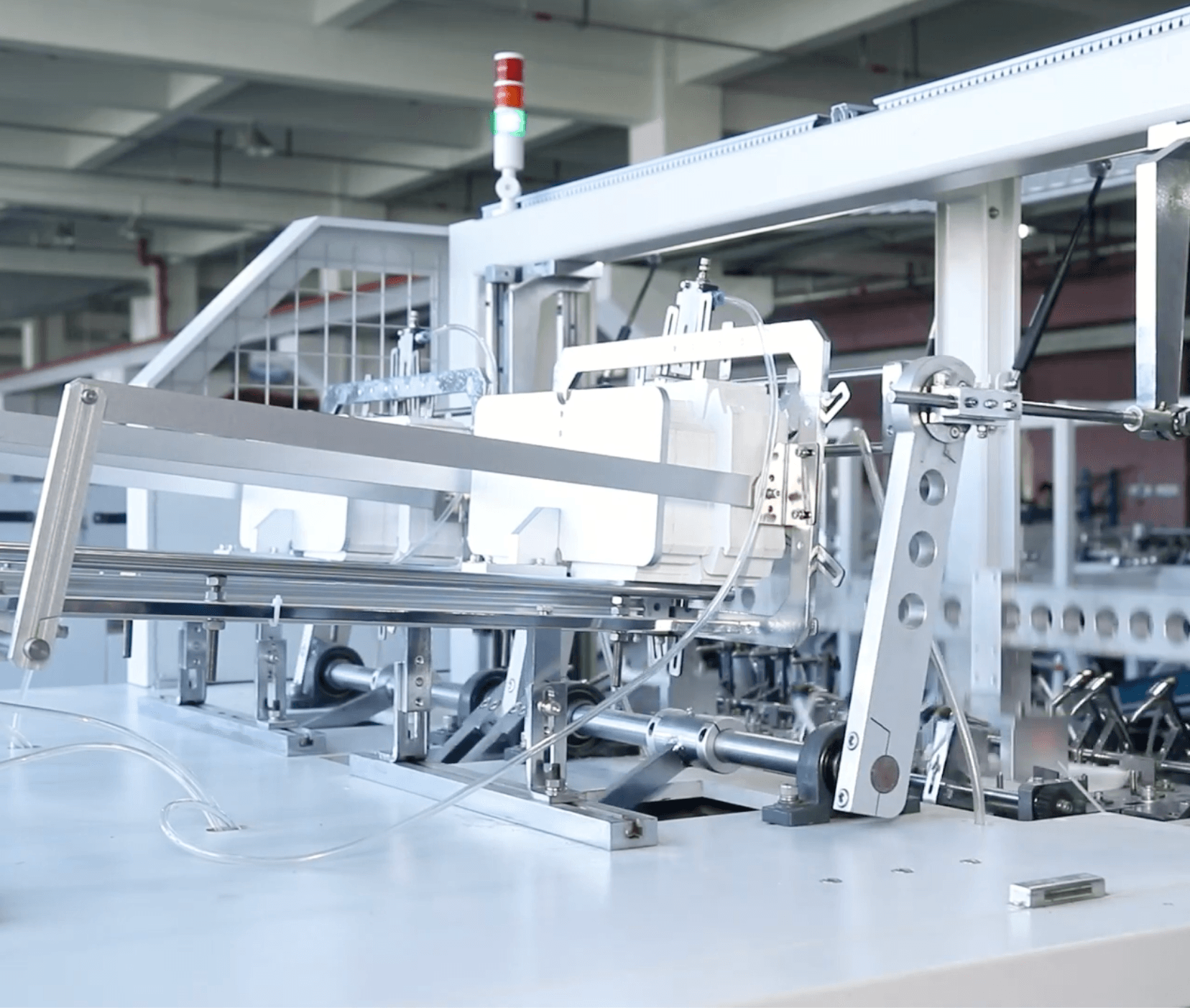

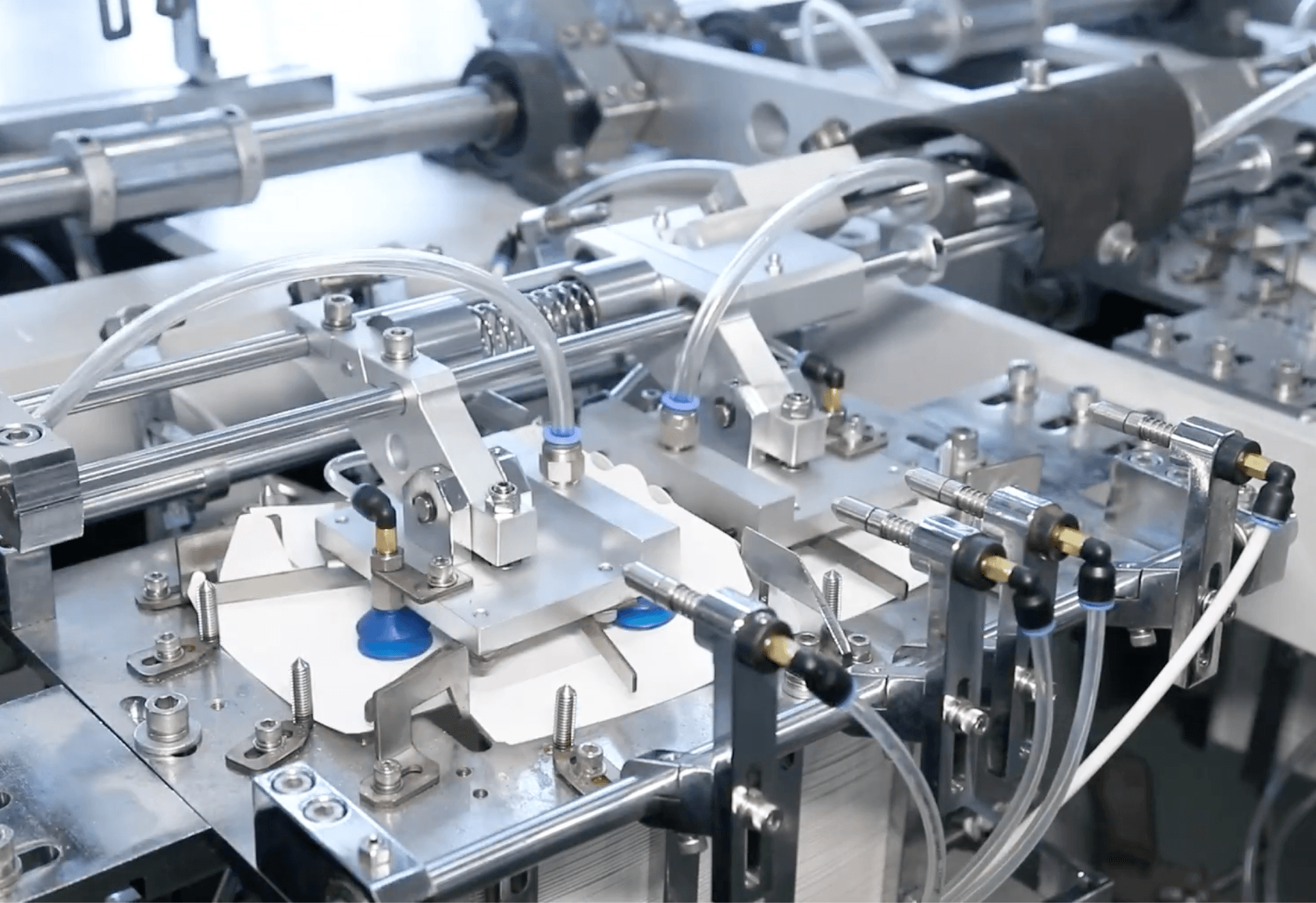

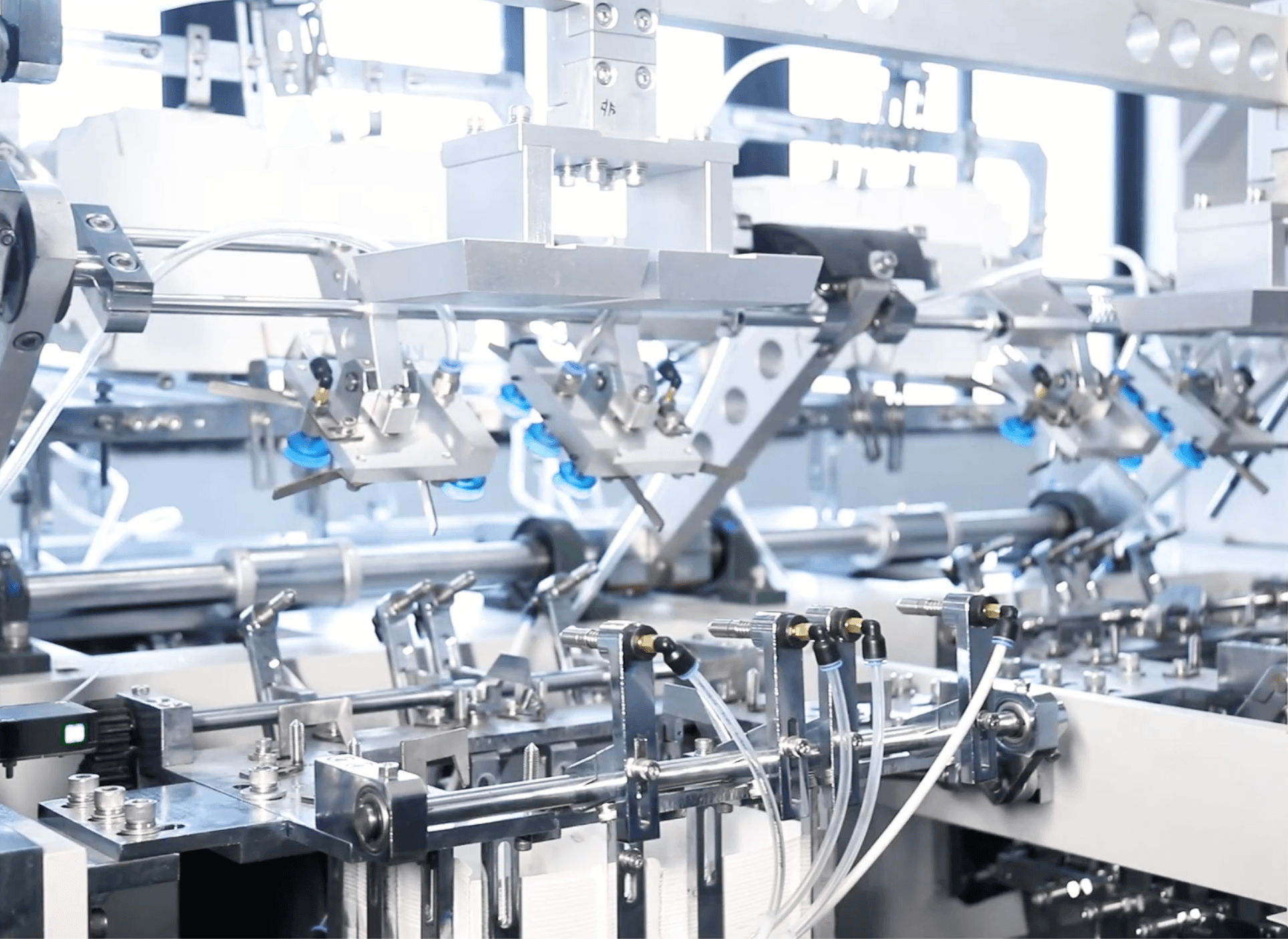

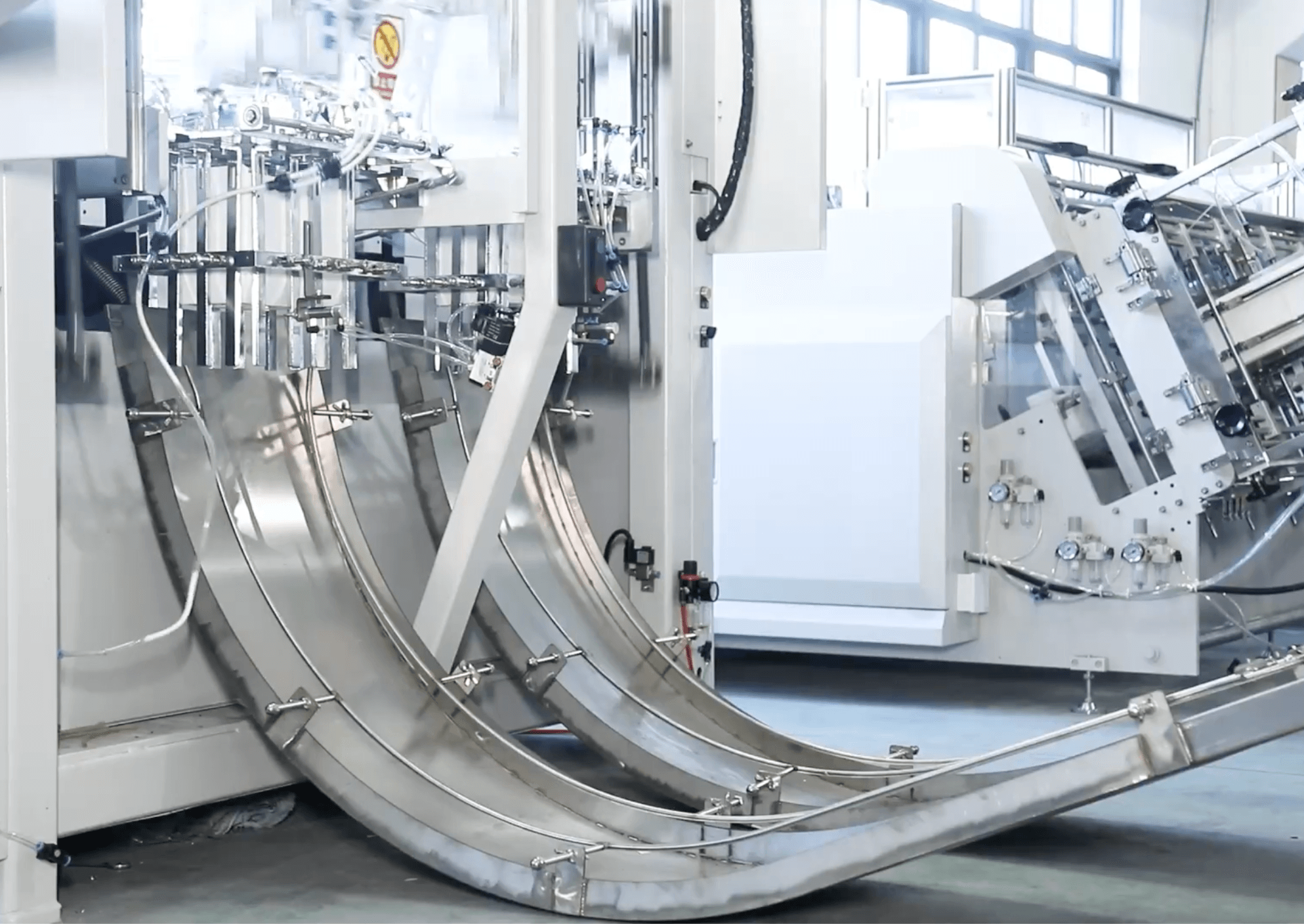

Equipment gallery
Four focused machine views for a quick, structured look at the complete equipment and key details.
Real machine-running video
Review the machine process before discussing your project.
Technical specifications
Final specifications, voltage, mold design and optional systems should be confirmed according to your product, material and required output.
Paper Weight
180–400 g/m²
Speed
30-200 pcs/min
Paper Thickness
0.3-1.5 mm
Minimum Paper Size
150 × 150 mm
Maximum Paper Size
500 × 380 mm
Air Pressure
0.5 MPa
Voltage
380V
Current
23A
Power
7.5 kW
Frequency
50Hz / 60Hz
Machine Weight
2,000 kg
Machine Dimensions (L × W × H)
2300 × 2200 × 2100 mm
Delivery & project support
CHANGHAI coordinates the key steps between your requirements and successful machine delivery.
Production Updates
Share scheduled progress updates, images and important next-step information.
Material Testing
Coordinate trial production using customer material where practical.
Pre-Shipment Testing
Review real test videos and agreed acceptance items before shipment.
Delivery Coordination
Coordinate packing, shipping documents and after-sales communication.
