Automatic Butterfly Paper Cup Machine CH-200
The CH-200 produces butterfly cups, large paper cups, popcorn buckets and paper bowls at 60–70 pcs/min.
Automatic Butterfly Paper Cup Machine
The CH-200 Automatic Butterfly Paper Cup Machine is designed for producing a wide range of specialty paper containers, including butterfly cups, large paper cups, popcorn buckets and paper bowls. It supports cup heights from 70 to 180 mm and works with 150–350 gsm single- or double-sided PE-coated paper, with a production speed of 60–70 pcs/min.
Products this machine can make
Send your product photo, dieline or sample. We will confirm the suitable mold and machine configuration.

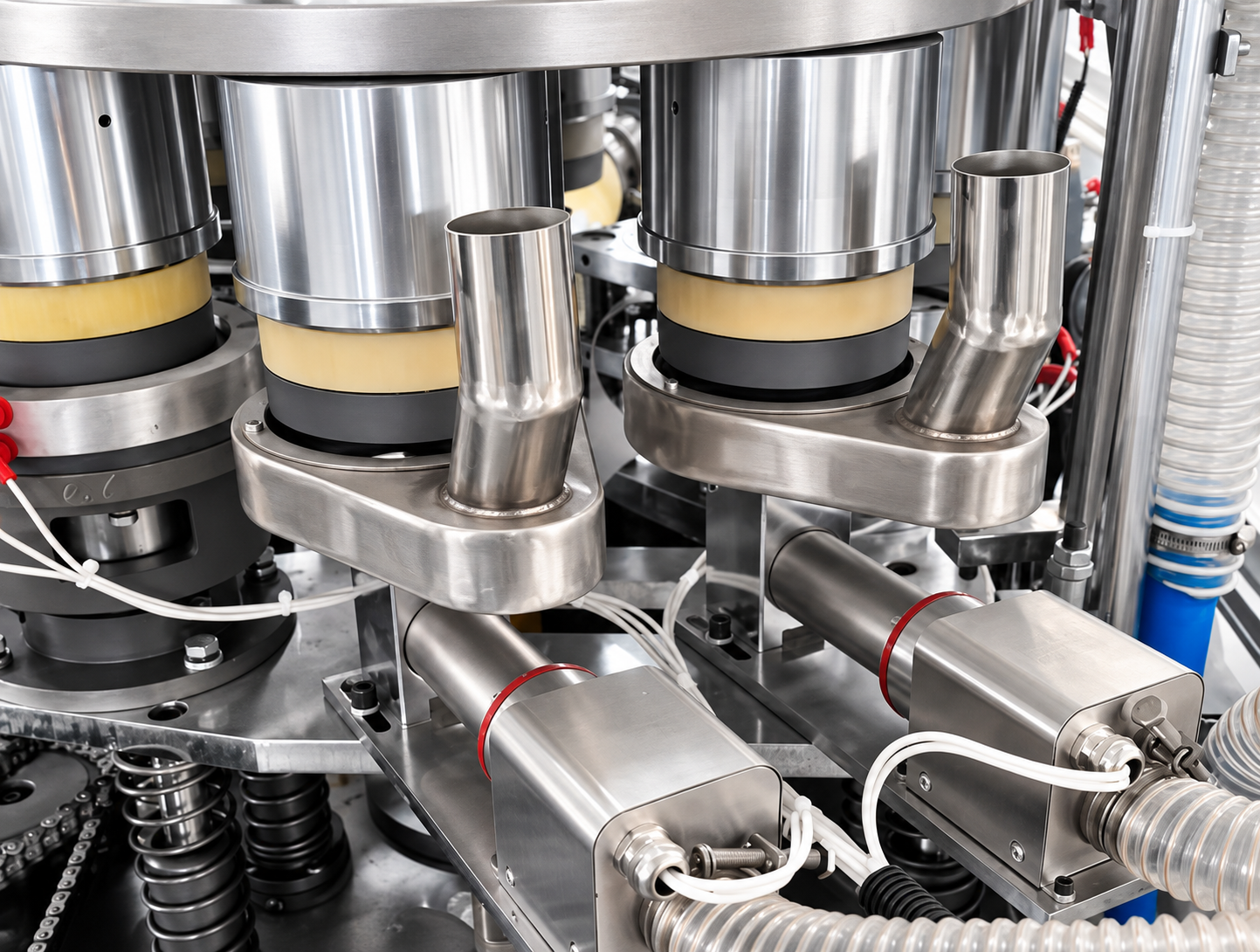

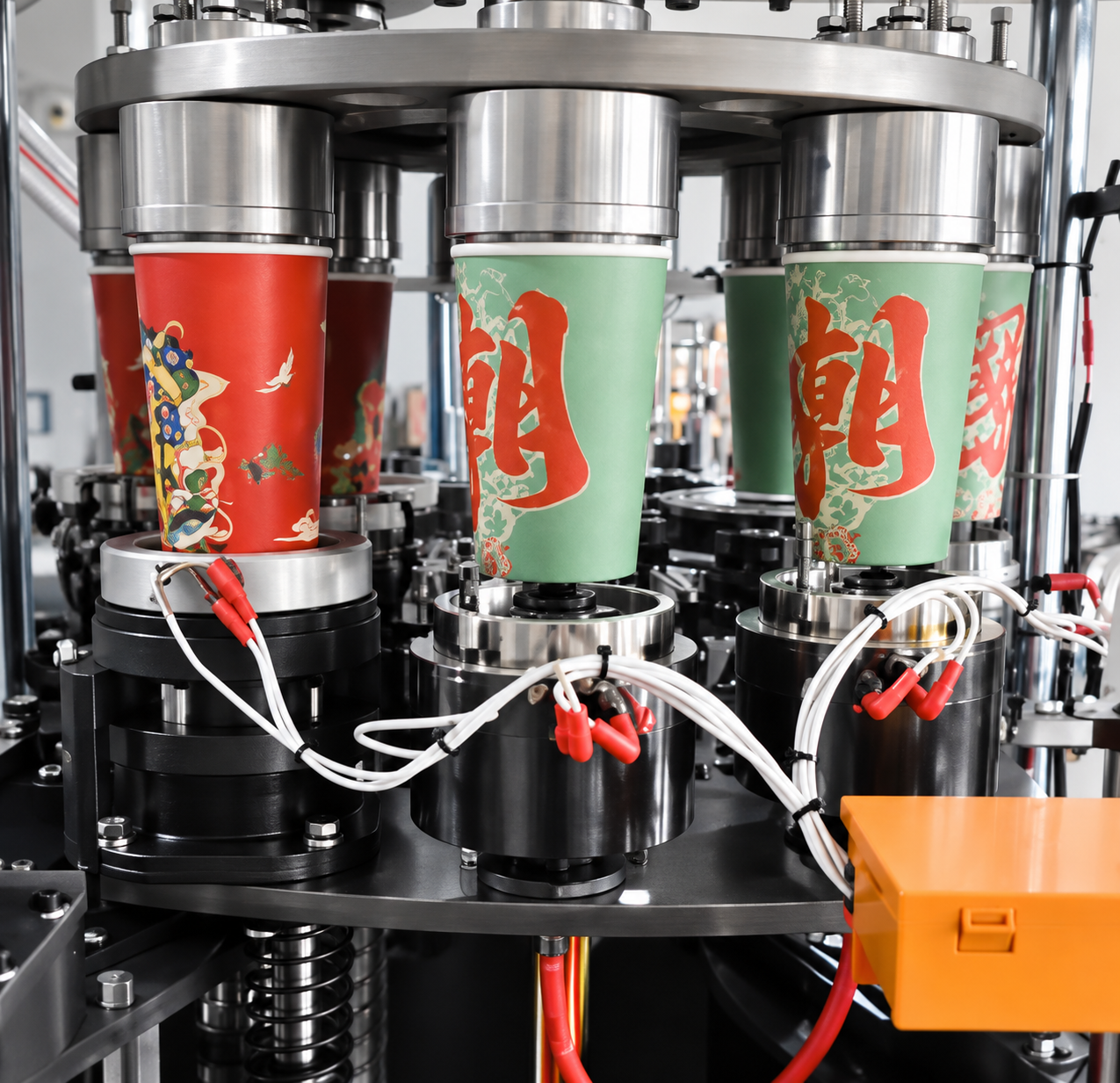

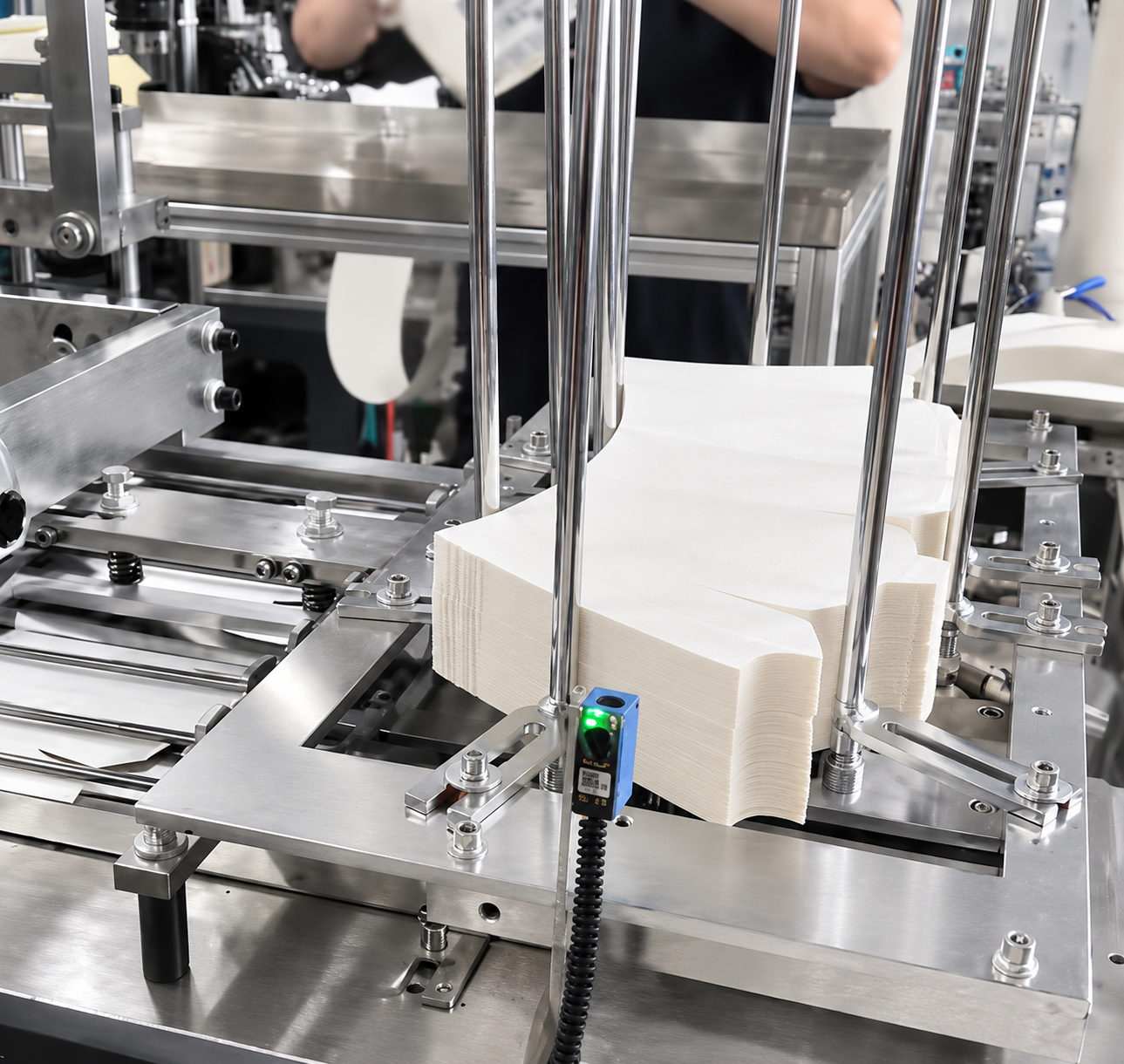

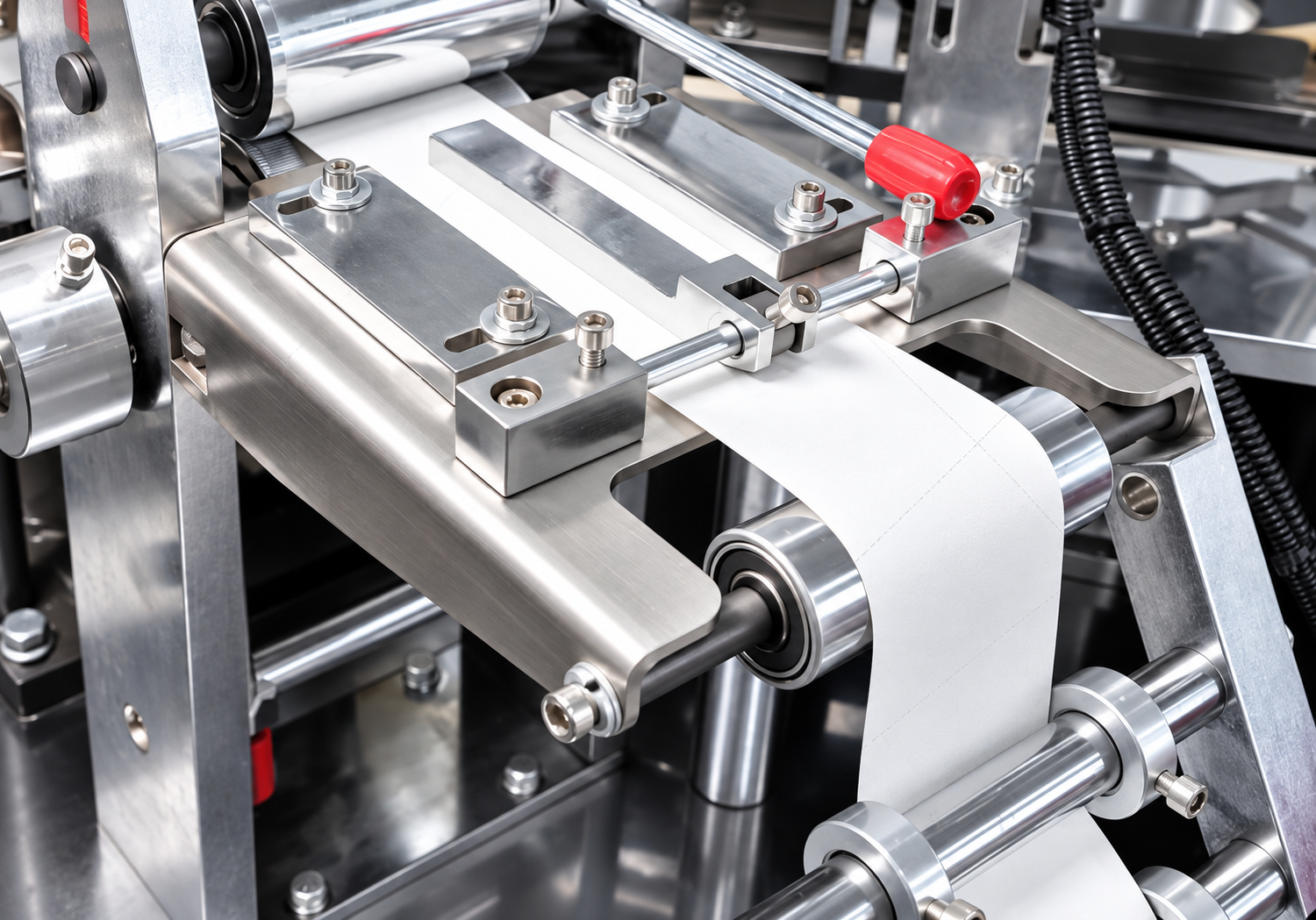

Equipment gallery
Four focused machine views for a quick, structured look at the complete equipment and key details.
Technical specifications
Final specifications, voltage, mold design and optional systems should be confirmed according to your product, material and required output.
Cup Size
height from 70 mm to 180 mm
Paper Gram Weight
150–350 gsm
Suitable Materials
single-sided or double-sided PE-coated paper
Production Speed
60–70 pcs/min
Power Source
50/60 Hz, 380V/220V
Total Power
9 kw
Machine Weight
3200 kg
Overall Size
Machine: 2450 × 1350 × 2100 mm Collector: 1500 × 450 × 1350 mm
Cup Body Bonding
Ultrasonic
Delivery & project support
CHANGHAI coordinates the key steps between your requirements and successful machine delivery.
Production Updates
Share scheduled progress updates, images and important next-step information.
Material Testing
Coordinate trial production using customer material where practical.
Pre-Shipment Testing
Review real test videos and agreed acceptance items before shipment.
Delivery Coordination
Coordinate packing, shipping documents and after-sales communication.
