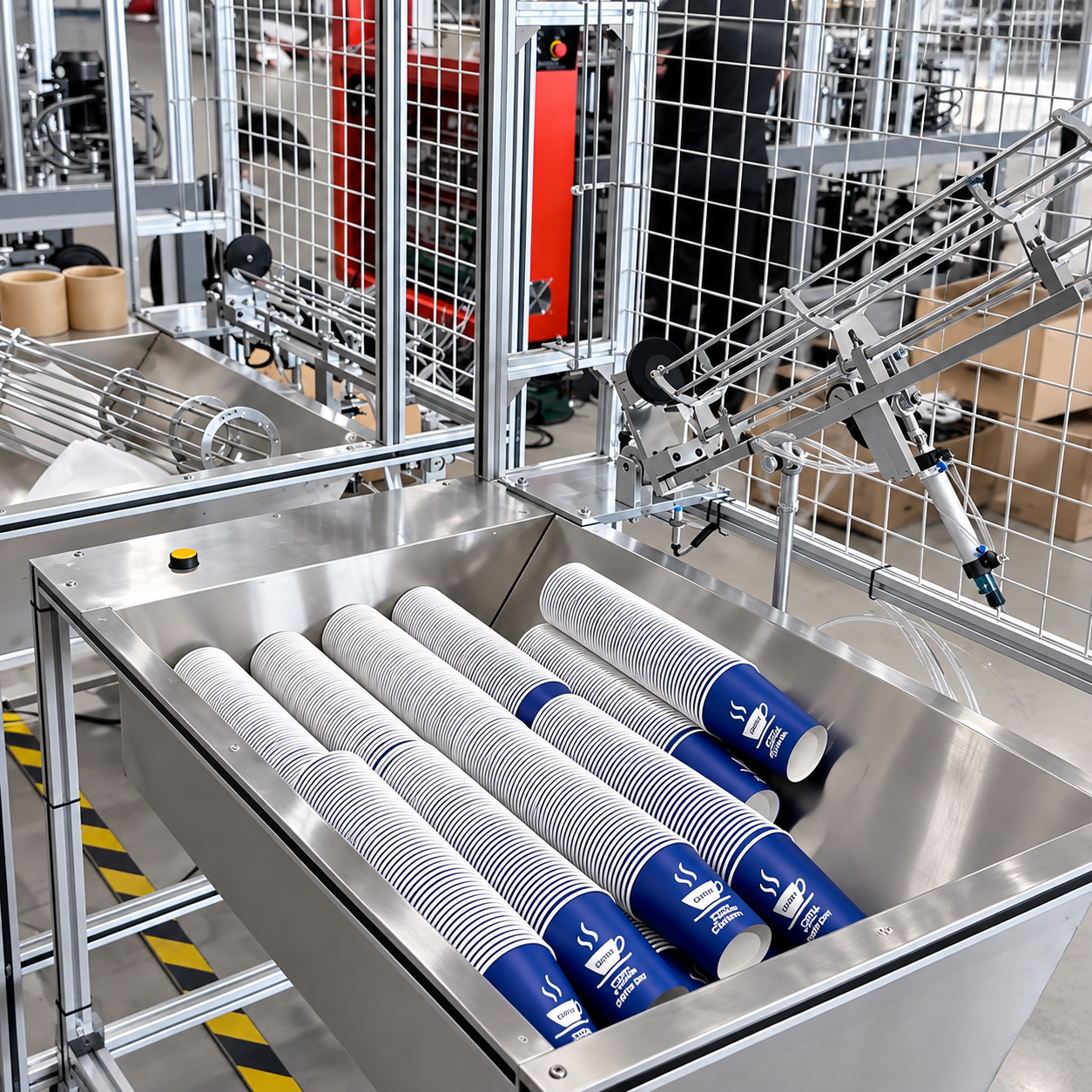

High-Speed Paper Cup Making Machine CH-180
CH-180 is a high-speed servo-driven paper cup machine with a stable output of 130–180 cups/min, suitable for 2.5–16 oz paper cups.
High-Speed Paper Cup Making Machine
The CH-180 is a high-speed paper cup making machine designed for manufacturers requiring higher production capacity, stable operation and precise forming. Equipped with a 7-servo motor drive system, it delivers a stable production speed of 130–180 cups per minute and supports paper cup sizes from 2.5 oz to 16 oz. It is suitable for producing tasting cups, coffee cups, milk tea cups and larger beverage cups.

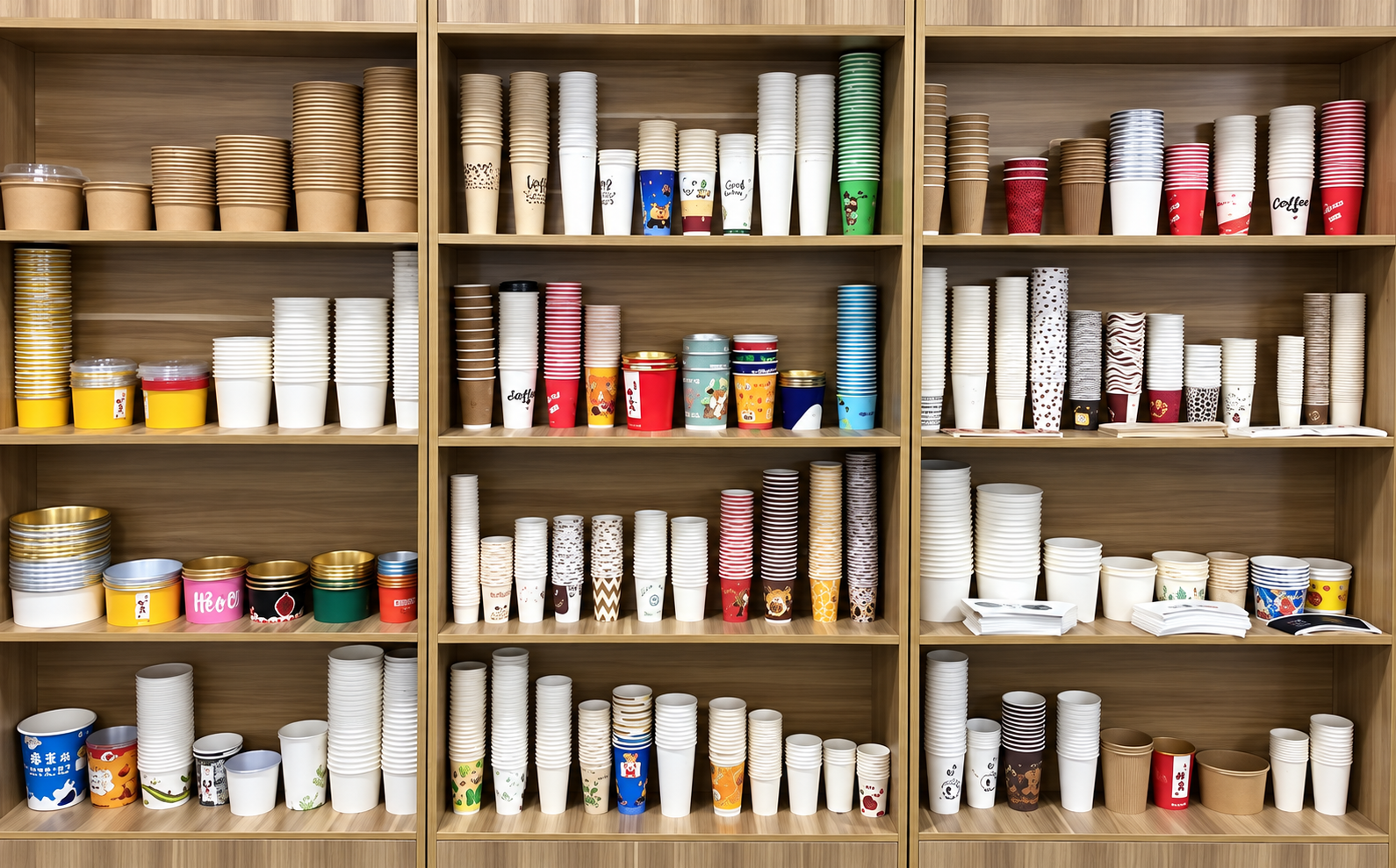

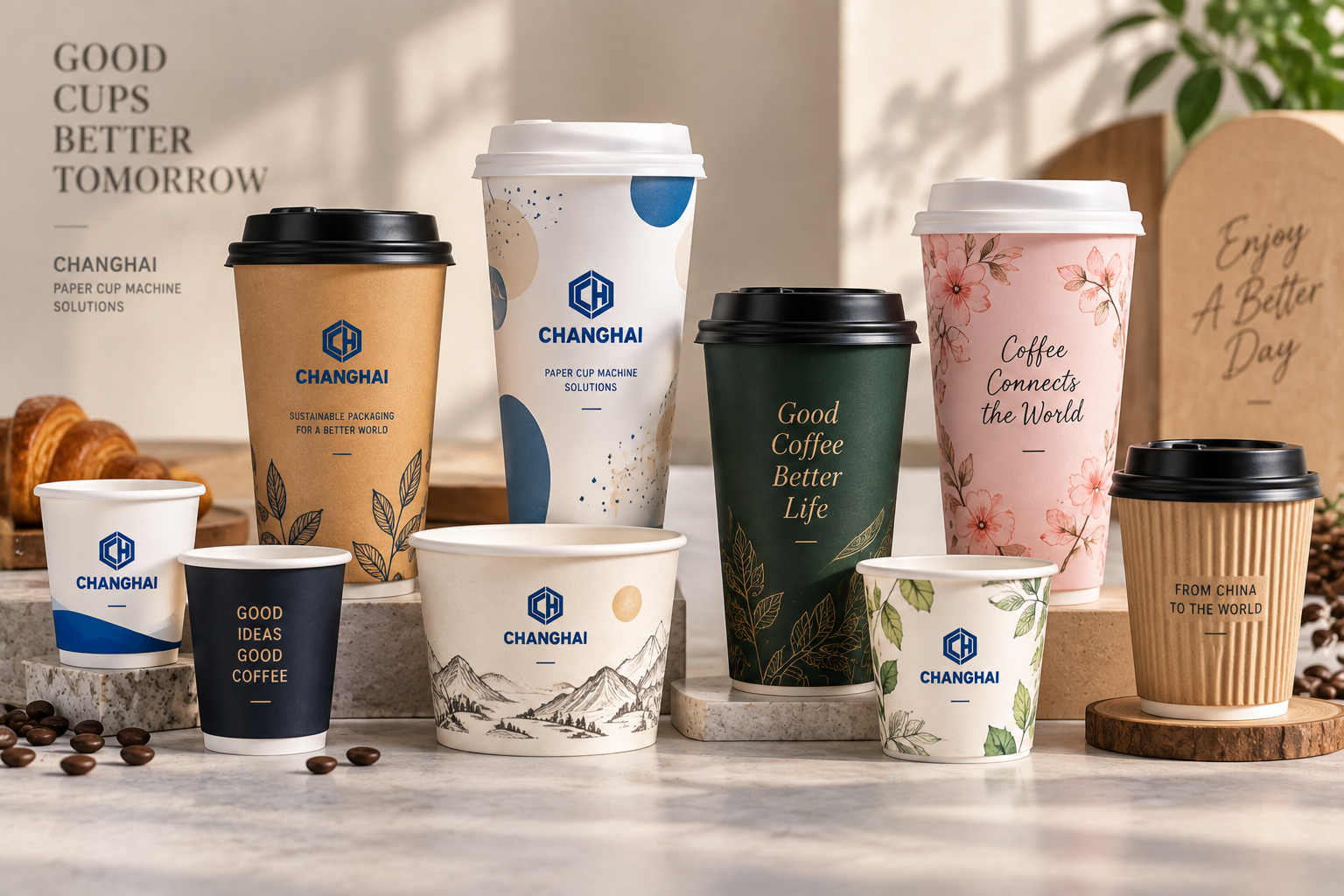

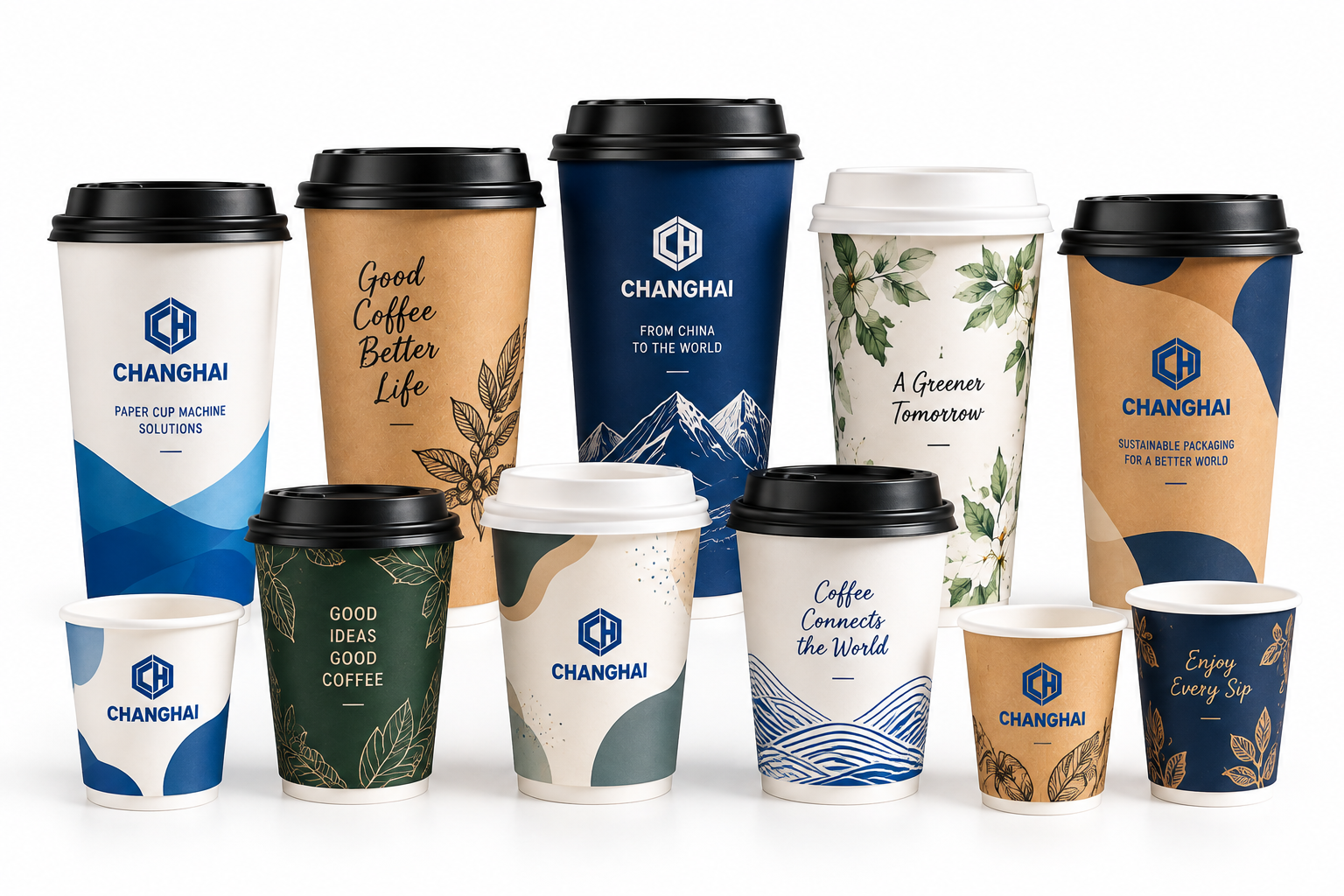

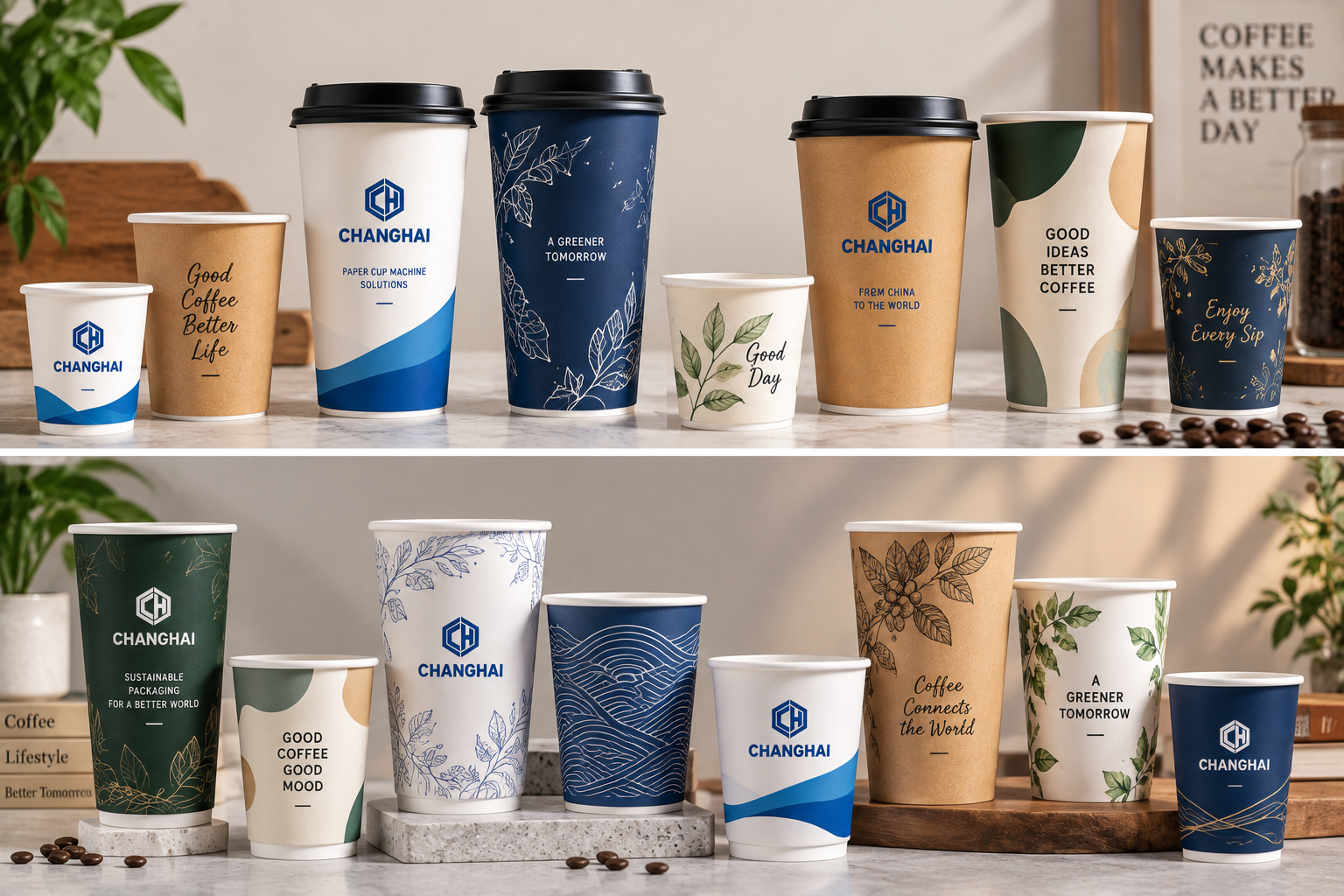

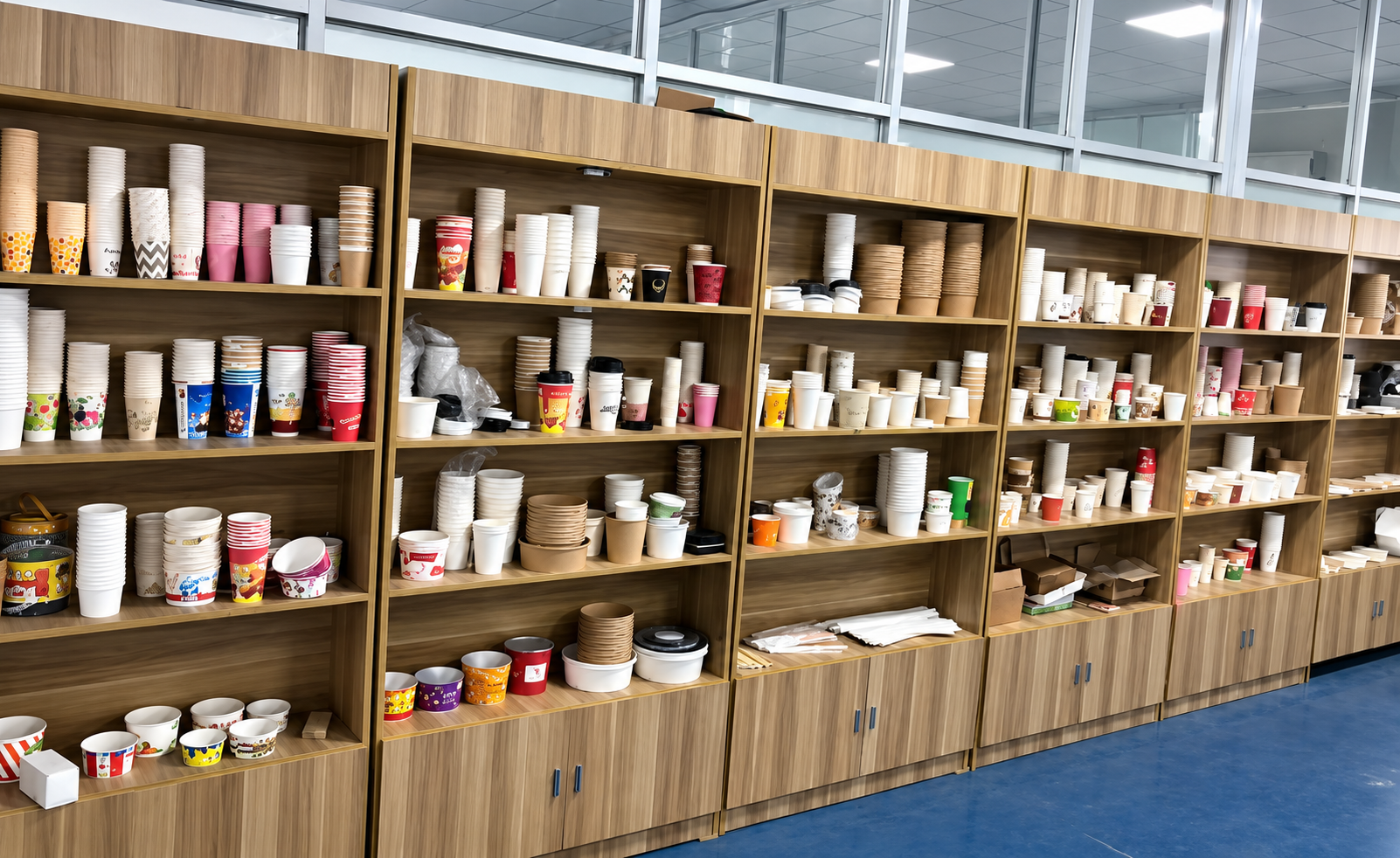

Products this machine can make
Send your product photo, dieline or sample. We will confirm the suitable mold and machine configuration.

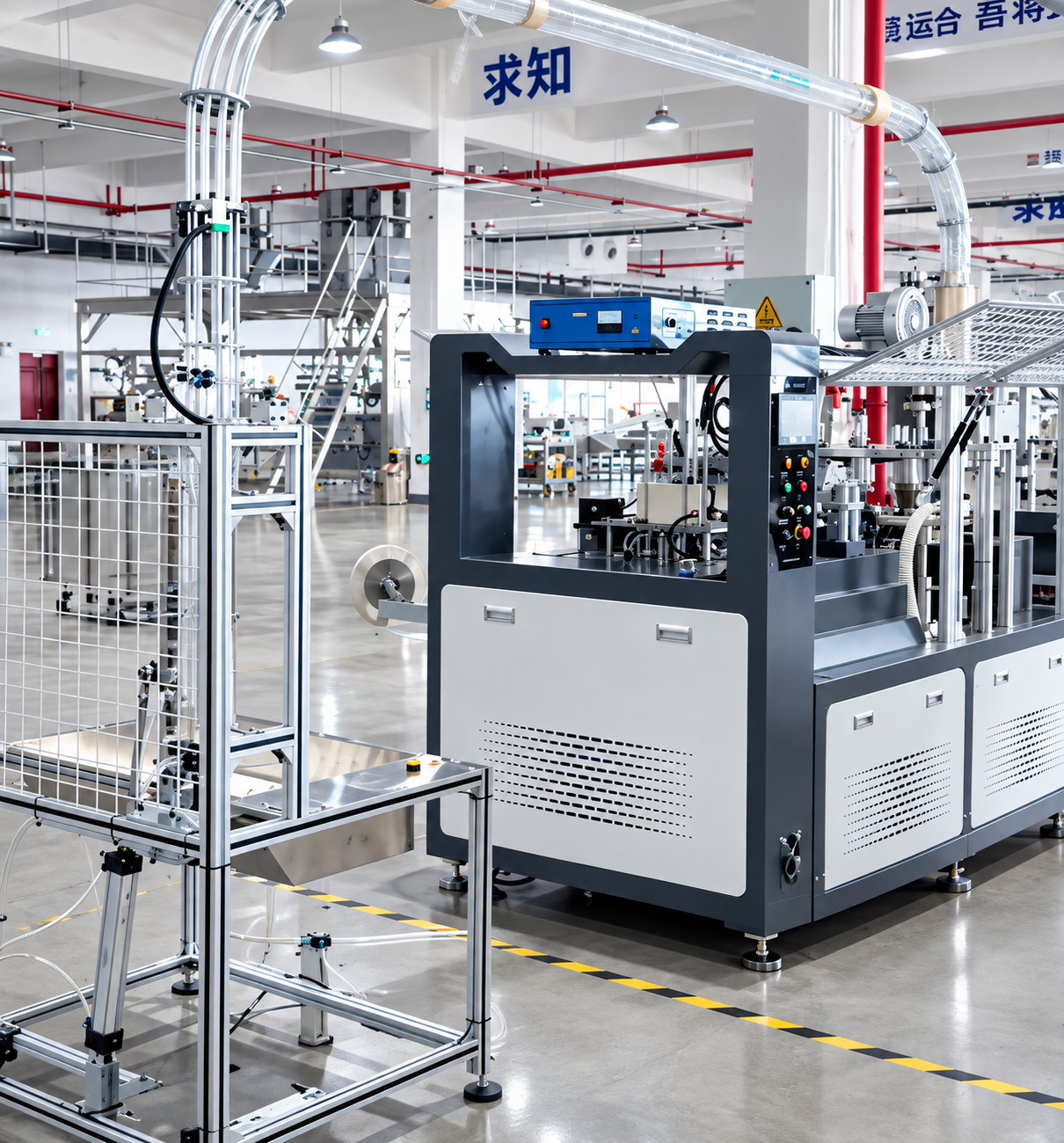

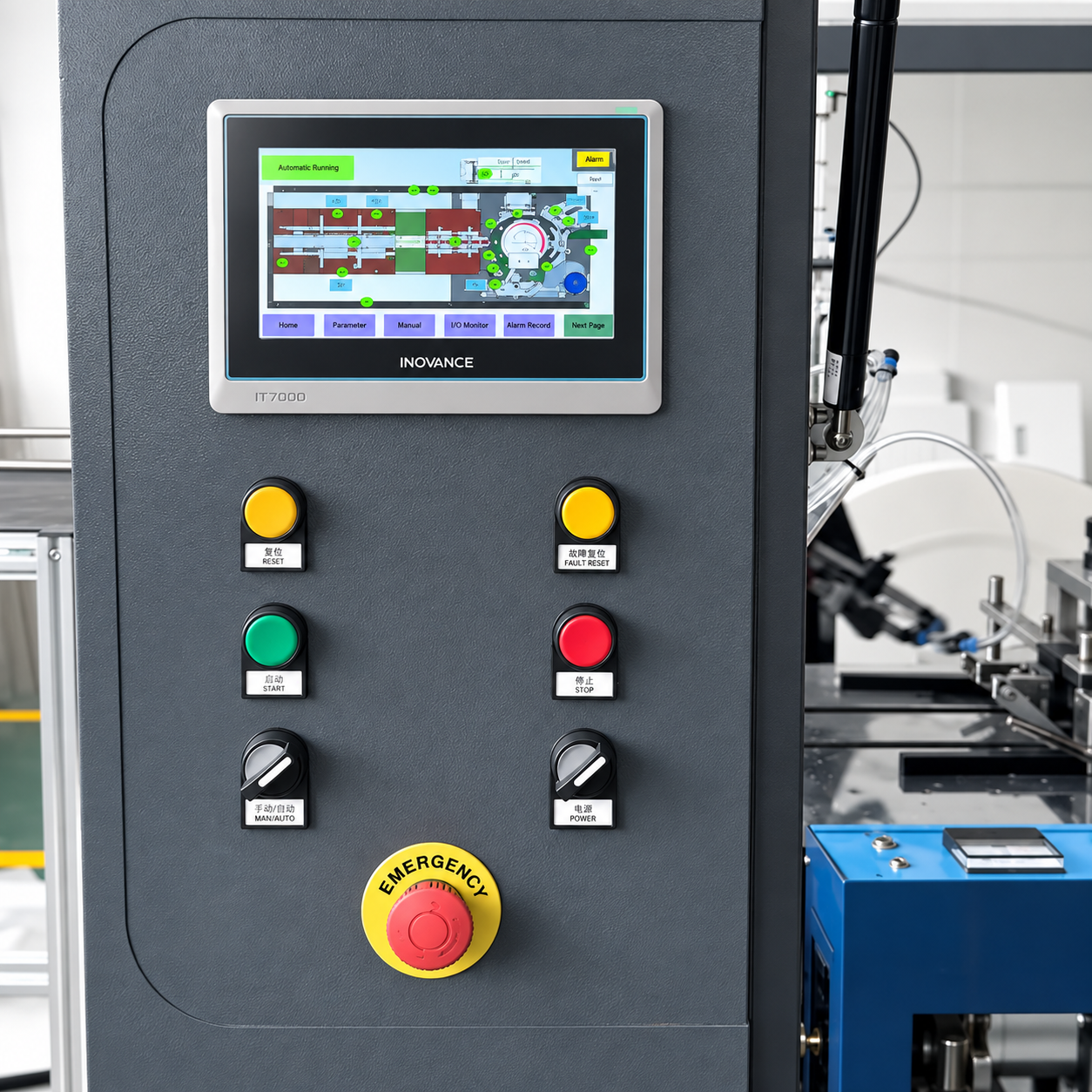

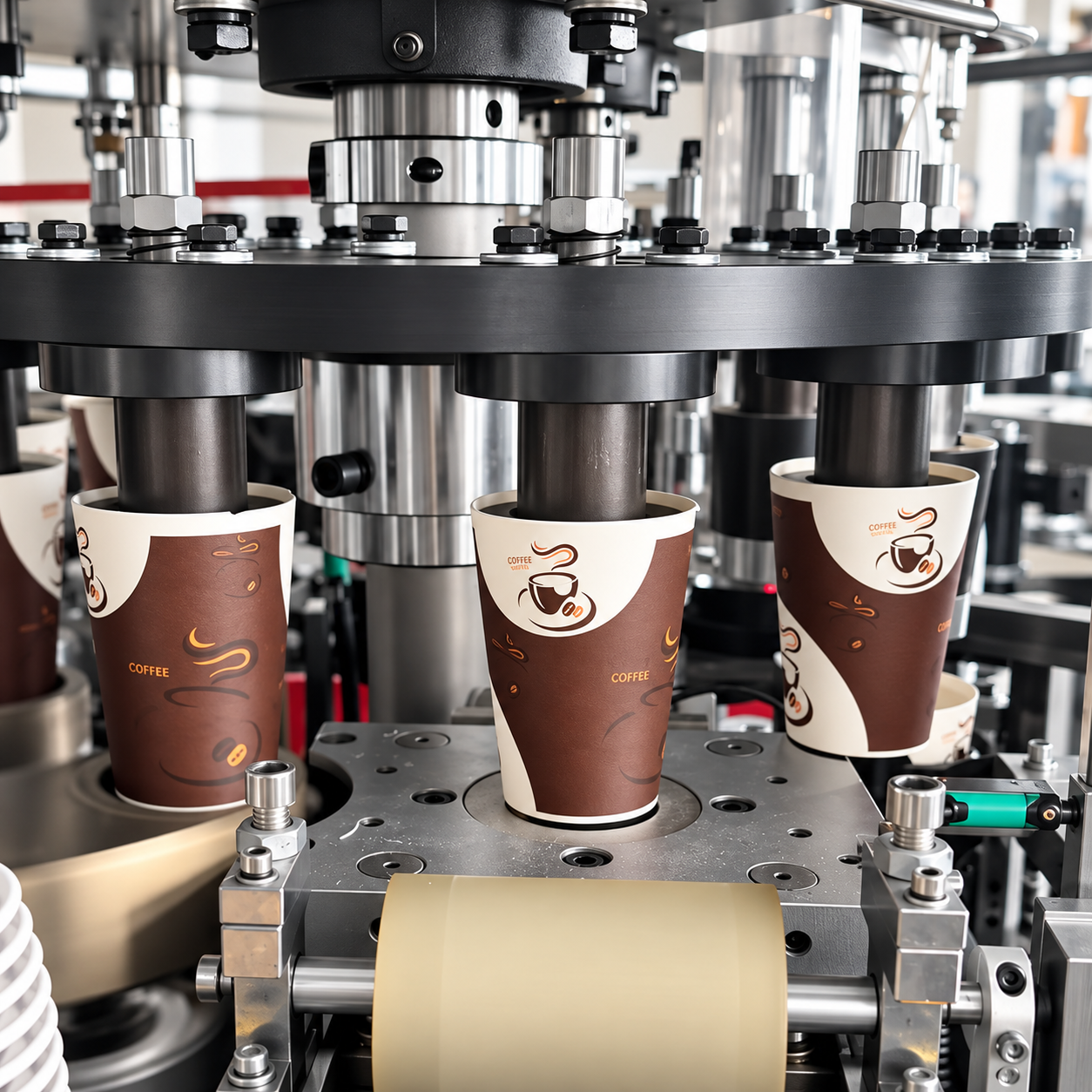

Equipment gallery
Four focused machine views for a quick, structured look at the complete equipment and key details.
Technical specifications
Final specifications, voltage, mold design and optional systems should be confirmed according to your product, material and required output.
Paper Cup Size
2.5-16 oz
Paper Material
140-350 gsm One Side PE Coated Paper Or Double
Speed
130-180 pcs/min
Power Source
380V/220V 50/60HZ
Recommended Power
380 V 3-phase
Heating Total Power
20 kw
Main Motor
1.8 kw
Total Power
22 kw
Weight
2800 kg
Overall Size
2170 * 1150 * 1820 mm
Air Pressure
0.4-0.6 MPa
Operation Person
1 operator can manage multiple machines.
Operation Space
About 3000*3000 mm
Note
Can be customized according to your requirements
Delivery & project support
CHANGHAI coordinates the key steps between your requirements and successful machine delivery.
Production Updates
Share scheduled progress updates, images and important next-step information.
Material Testing
Coordinate trial production using customer material where practical.
Pre-Shipment Testing
Review real test videos and agreed acceptance items before shipment.
Delivery Coordination
Coordinate packing, shipping documents and after-sales communication.
