High Speed Paper Cup Machine CH-130
High-speed paper cup machine, 100–130 cups/min, for 2.5–16 oz cups.
High Speed Paper Cup Machine
The CH-130 is a high-speed paper cup making machine designed for stable and efficient production of 2.5–16 oz paper cups. With a stable production speed of 100–130 cups per minute, it is suitable for coffee cups, milk tea cups, tasting cups and larger beverage cups. The machine supports both single-PE and double-PE coated paper and is designed for reliable daily production with easy operation and maintenance.
Products this machine can make
Send your product photo, dieline or sample. We will confirm the suitable mold and machine configuration.

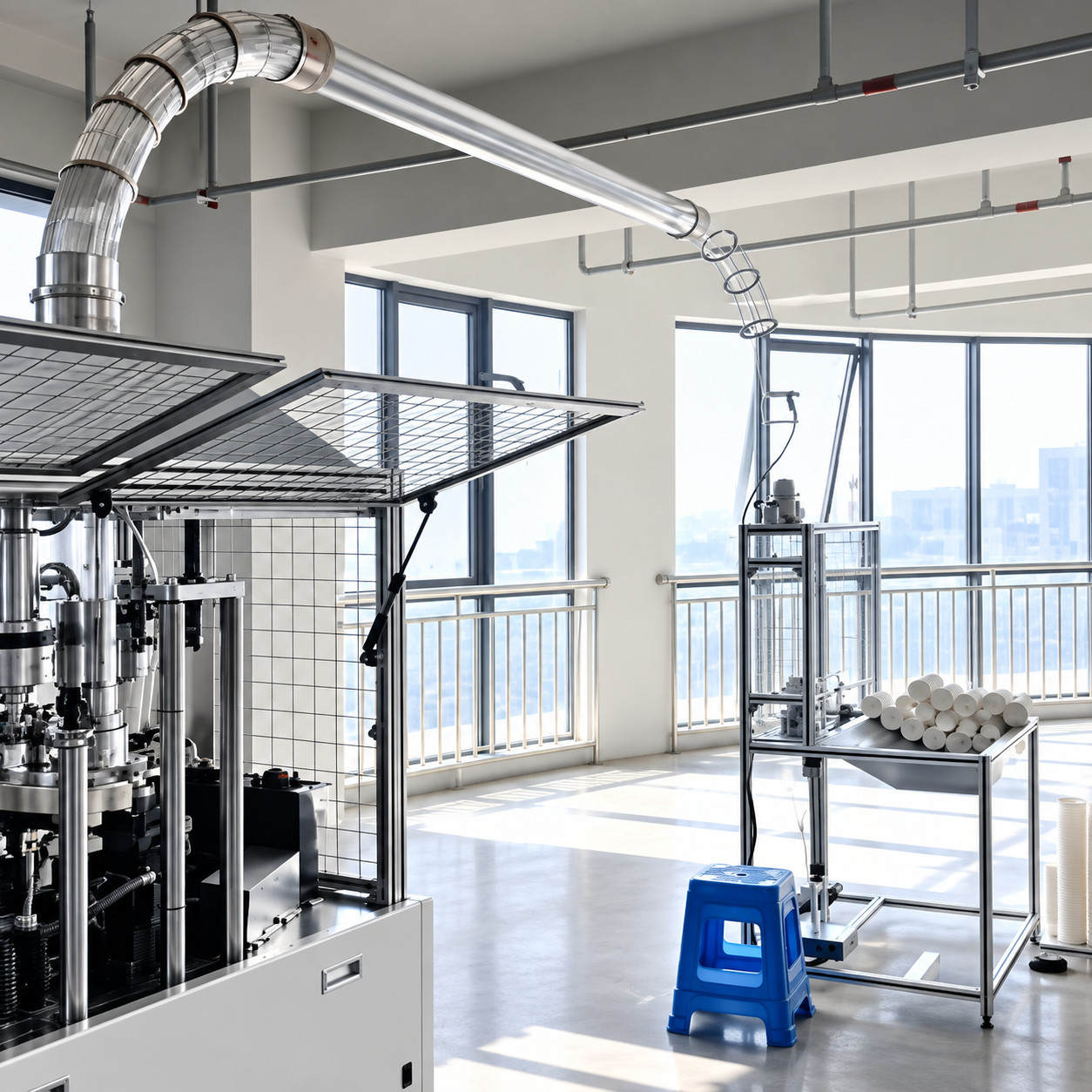

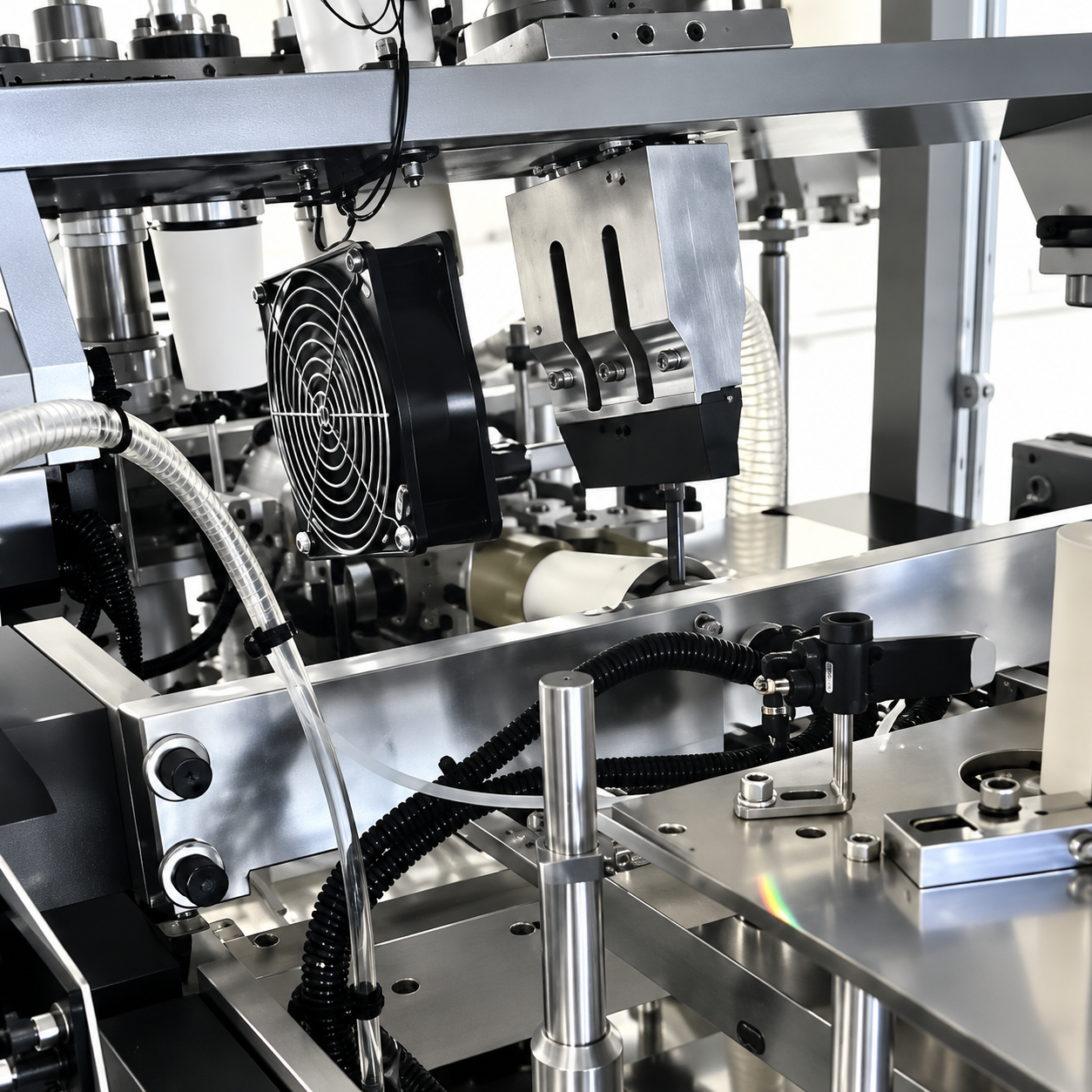

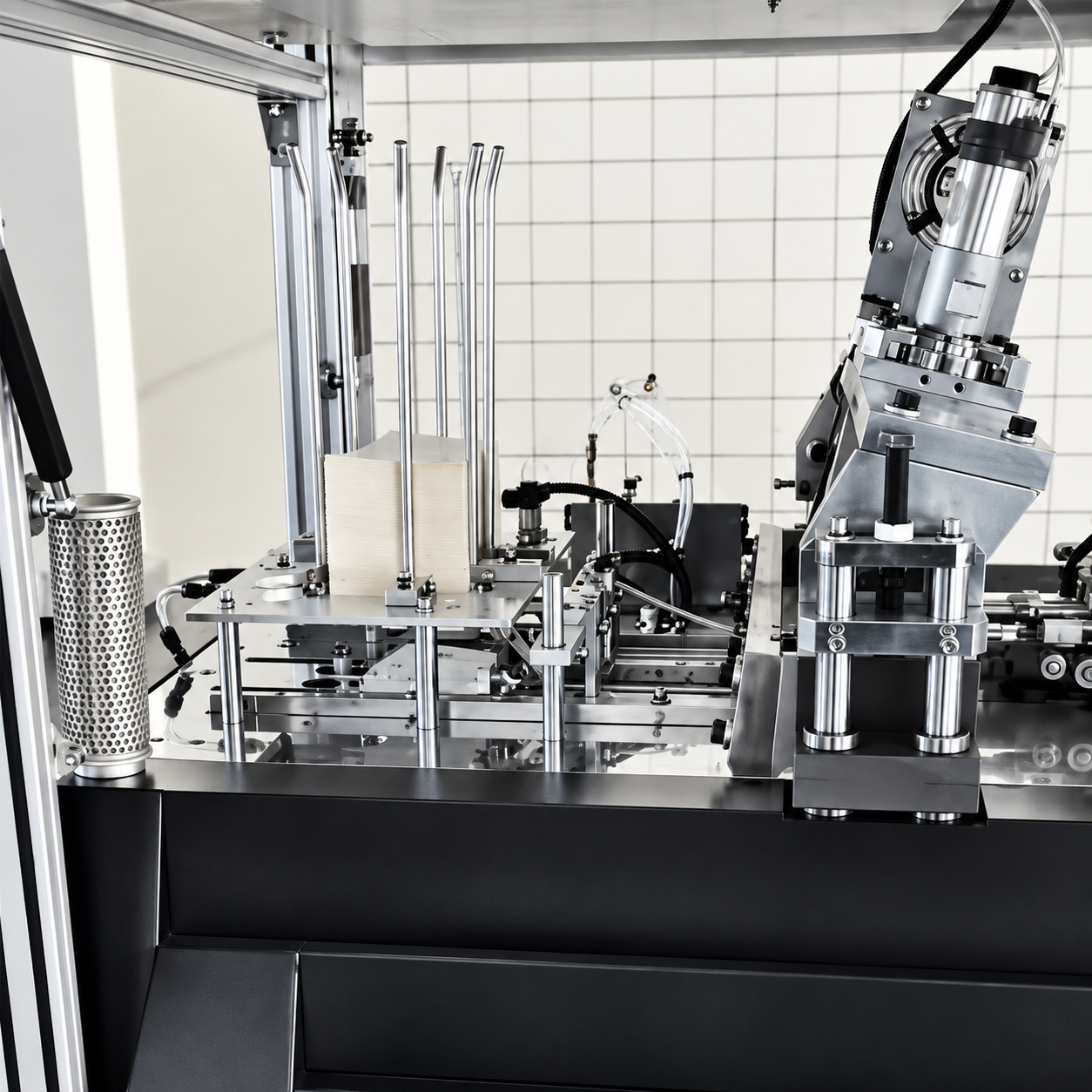

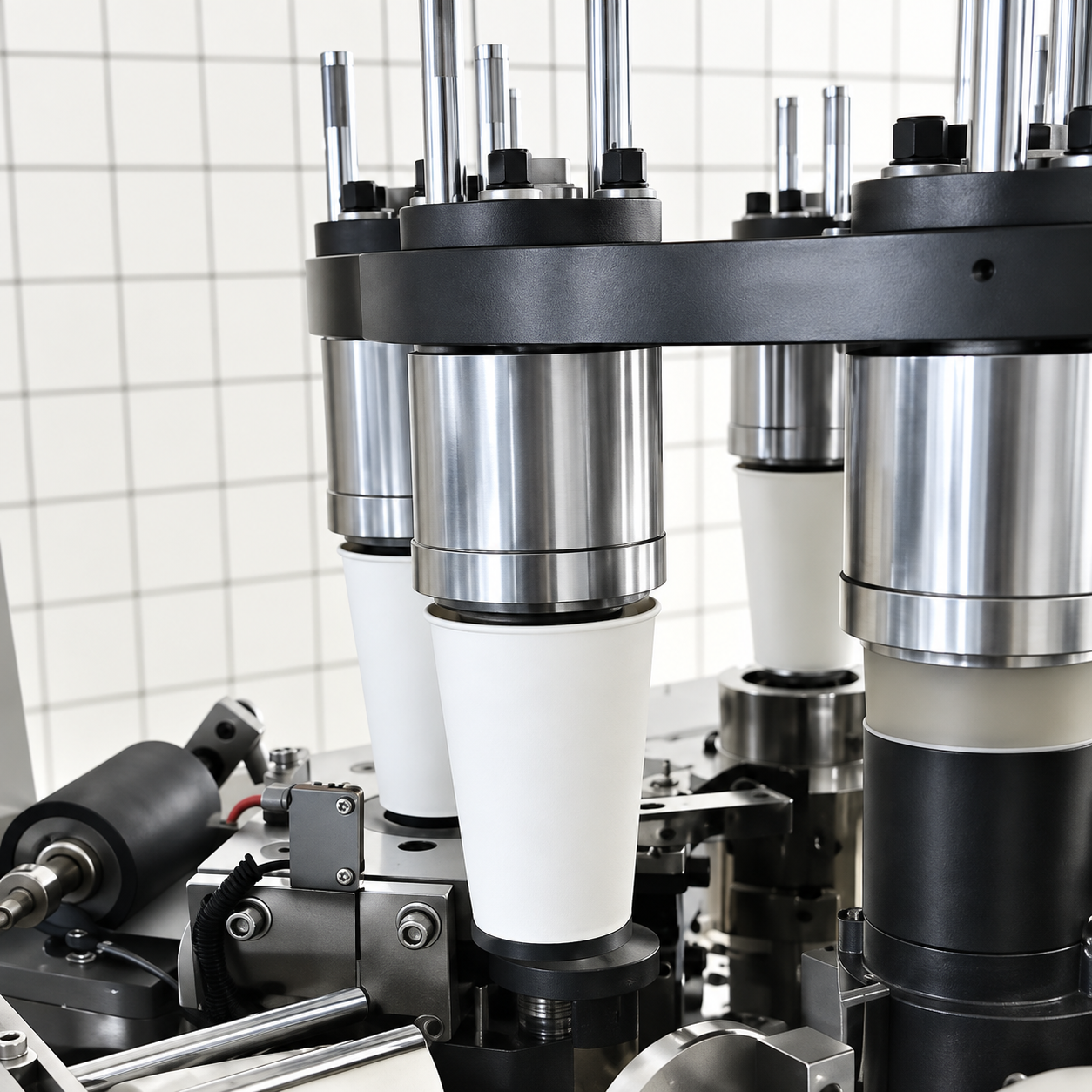

Equipment gallery
Four focused machine views for a quick, structured look at the complete equipment and key details.
Technical specifications
Final specifications, voltage, mold design and optional systems should be confirmed according to your product, material and required output.
Paper Cup Size
2.5-16 oz
Paper Material
140-350 gsm, one-side PE coated paper or double PE coated paper
Speed
100-130 pcs/min
Power Source
380V/220V. 50/60Hz (support special requirement)
Recommended Power
380V 3-phase
Heating Total Power
5 kw
Total Power
7 kw
Consumption Power
5 kw/h
Weight
2100 kg
Overall Size
2170 * 1150 * 1820 mm
Air Pressure
0.3-0.5 MPa
Operation Person
1 operator can manage multiple machines.
Operation Space
About 3000 x 3000 mm
Note
Can be customized according to requirements
Delivery & project support
CHANGHAI coordinates the key steps between your requirements and successful machine delivery.
Production Updates
Share scheduled progress updates, images and important next-step information.
Material Testing
Coordinate trial production using customer material where practical.
Pre-Shipment Testing
Review real test videos and agreed acceptance items before shipment.
Delivery Coordination
Coordinate packing, shipping documents and after-sales communication.
