Carton Erecting Machine CH-1200
Carton Erecting Machine
CH-1200 is a high-performance carton erecting machine designed for paper food packaging such as takeaway boxes, burger boxes. Featuring a robust structure, stable forming performance, low noise, and high efficiency, it integrates fully automated feeding, gluing, forming, and counting systems to ensure consistent and reliable production for modern packaging manufacturers.

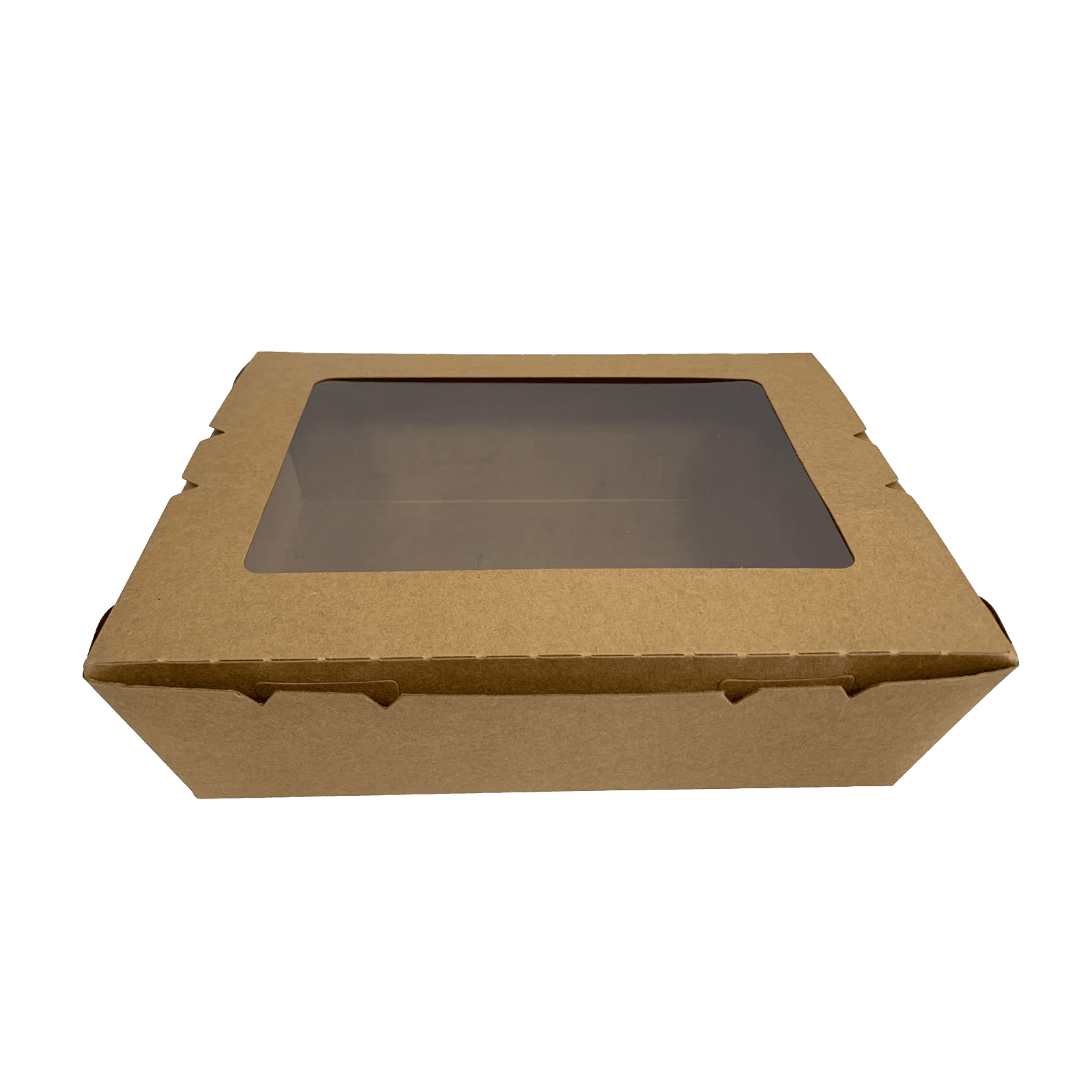

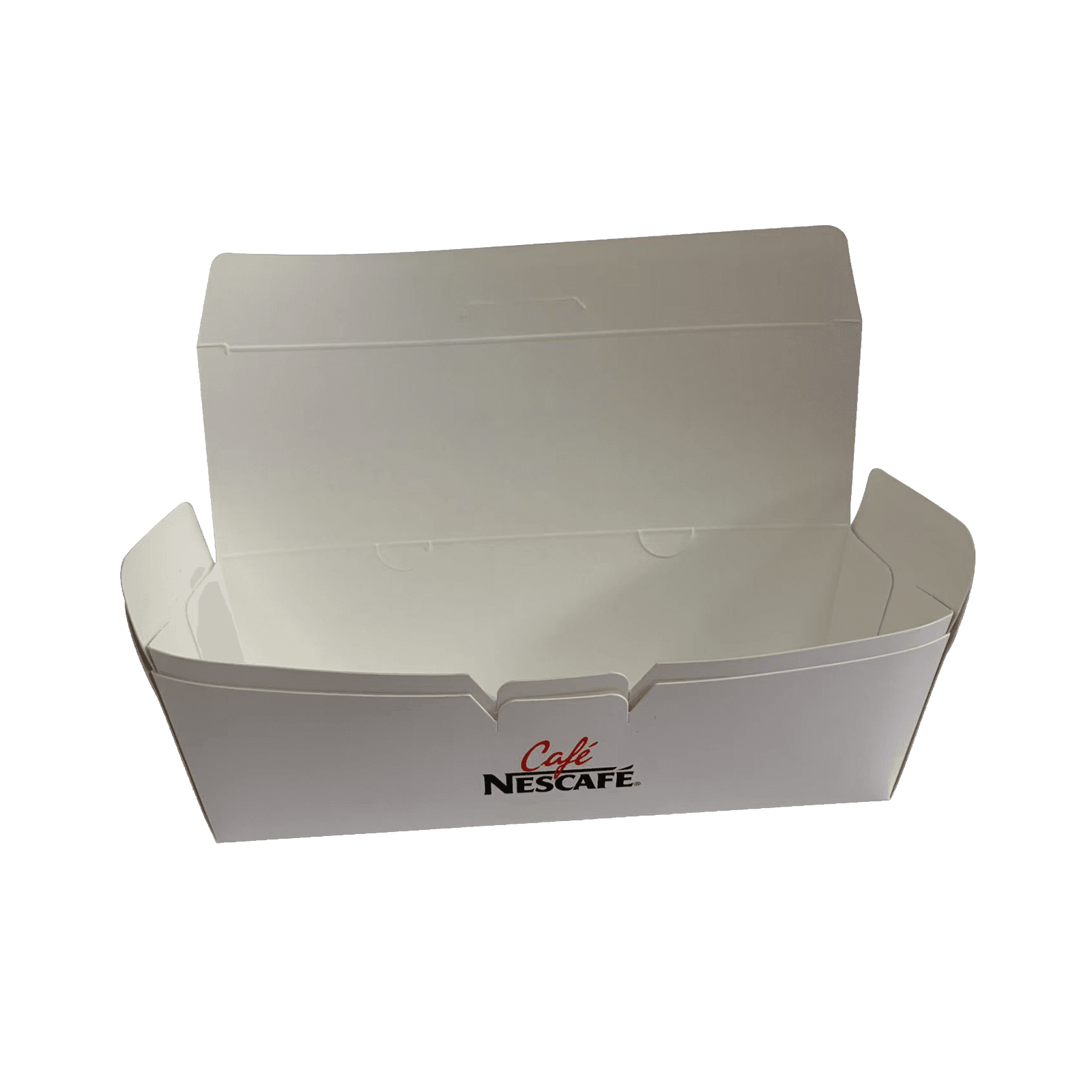

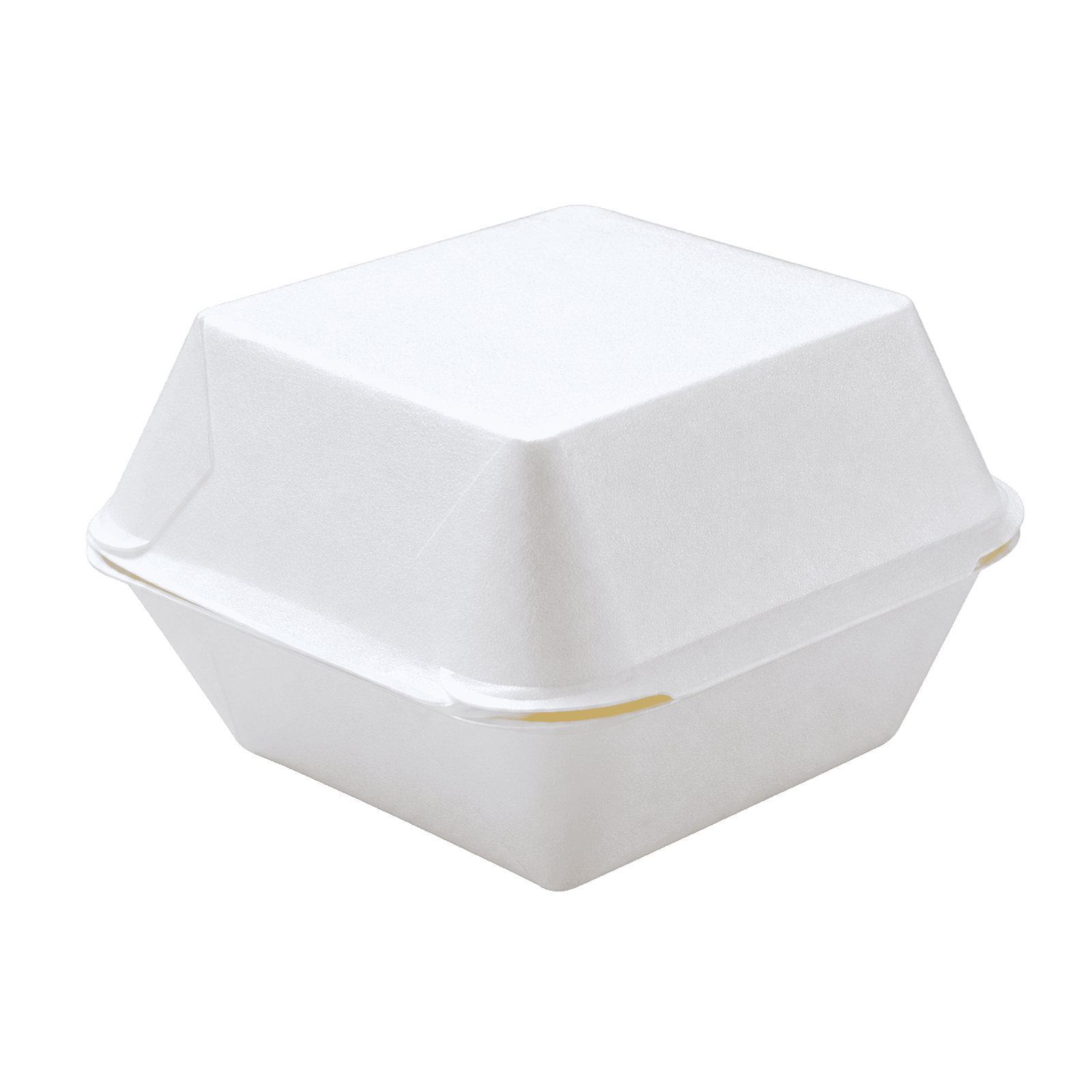

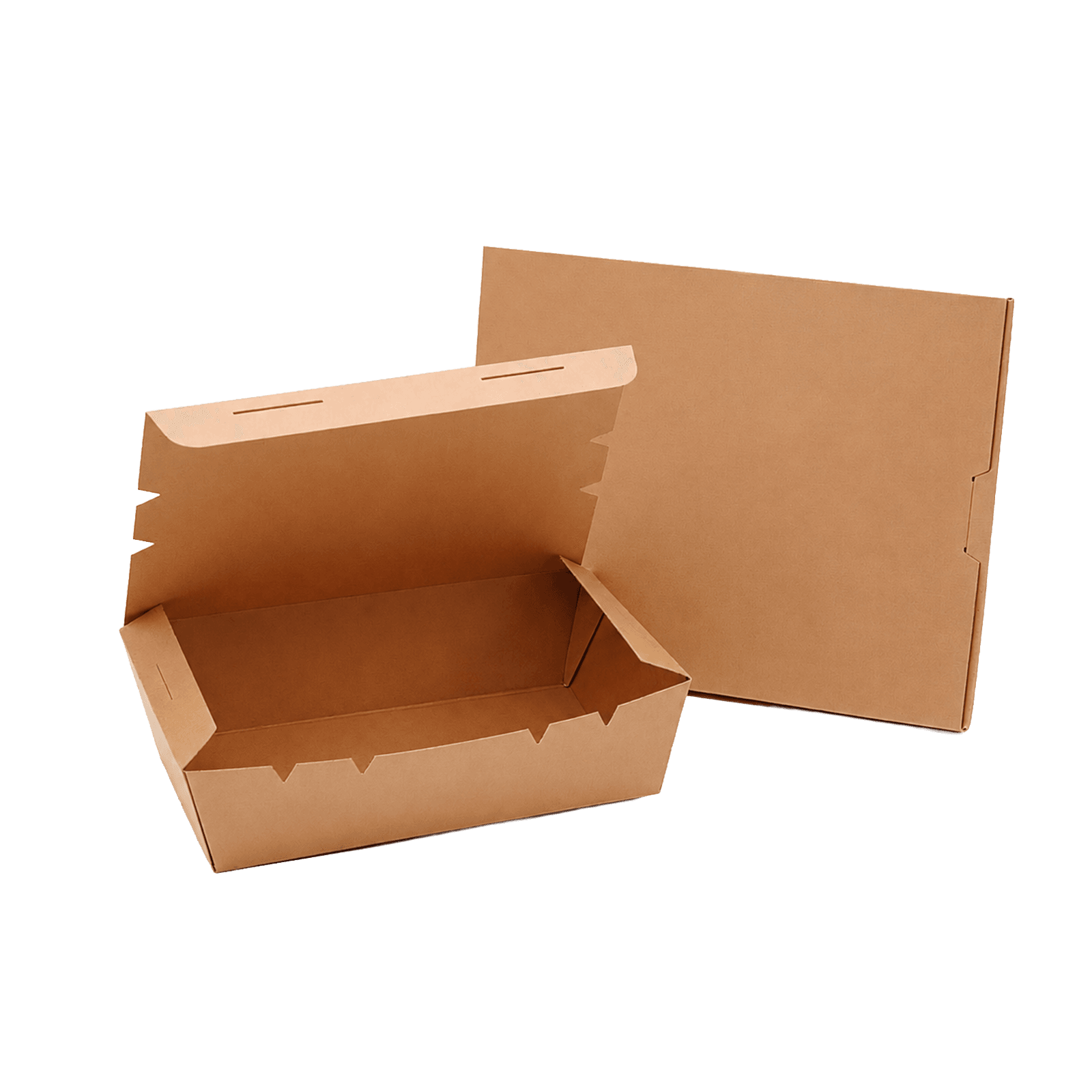

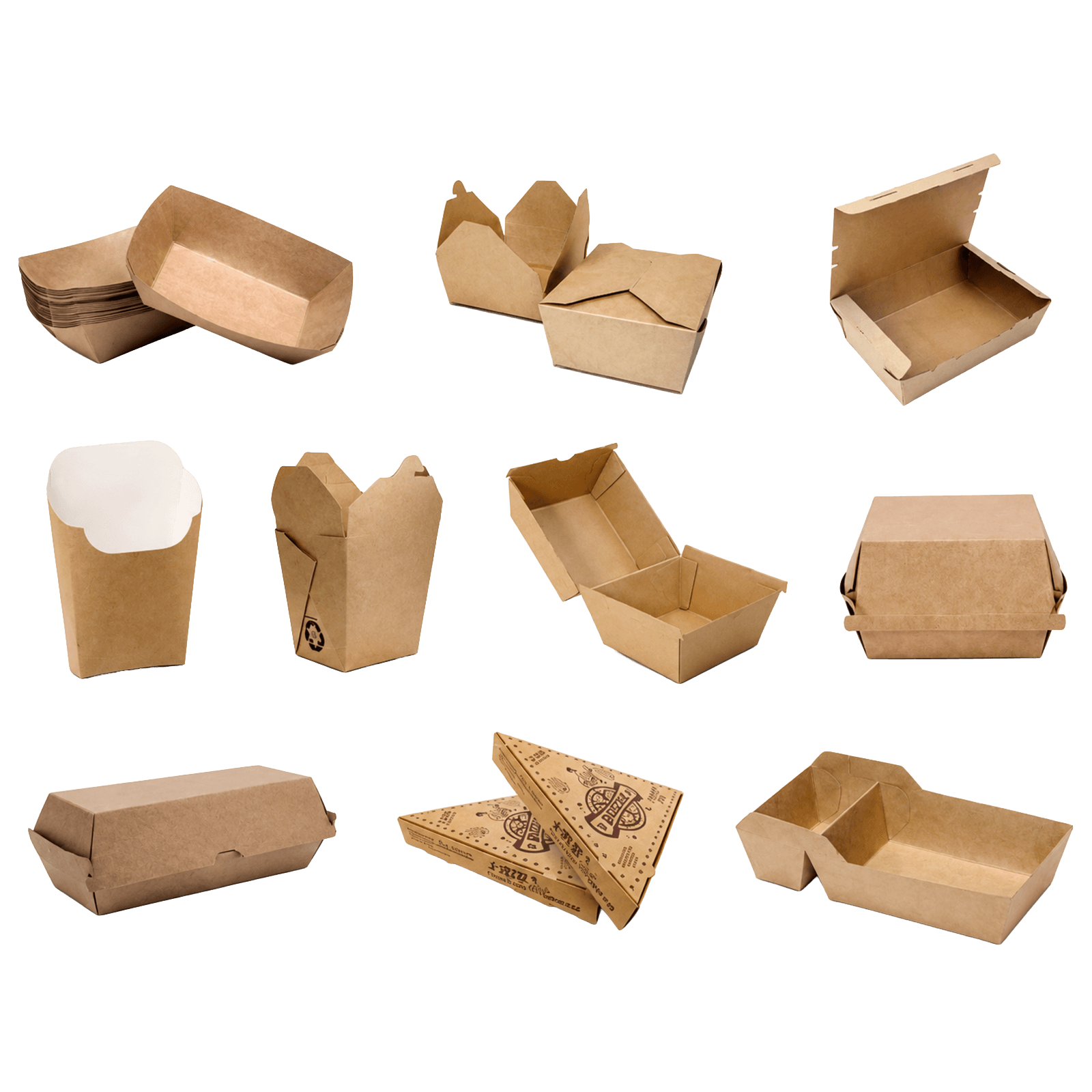

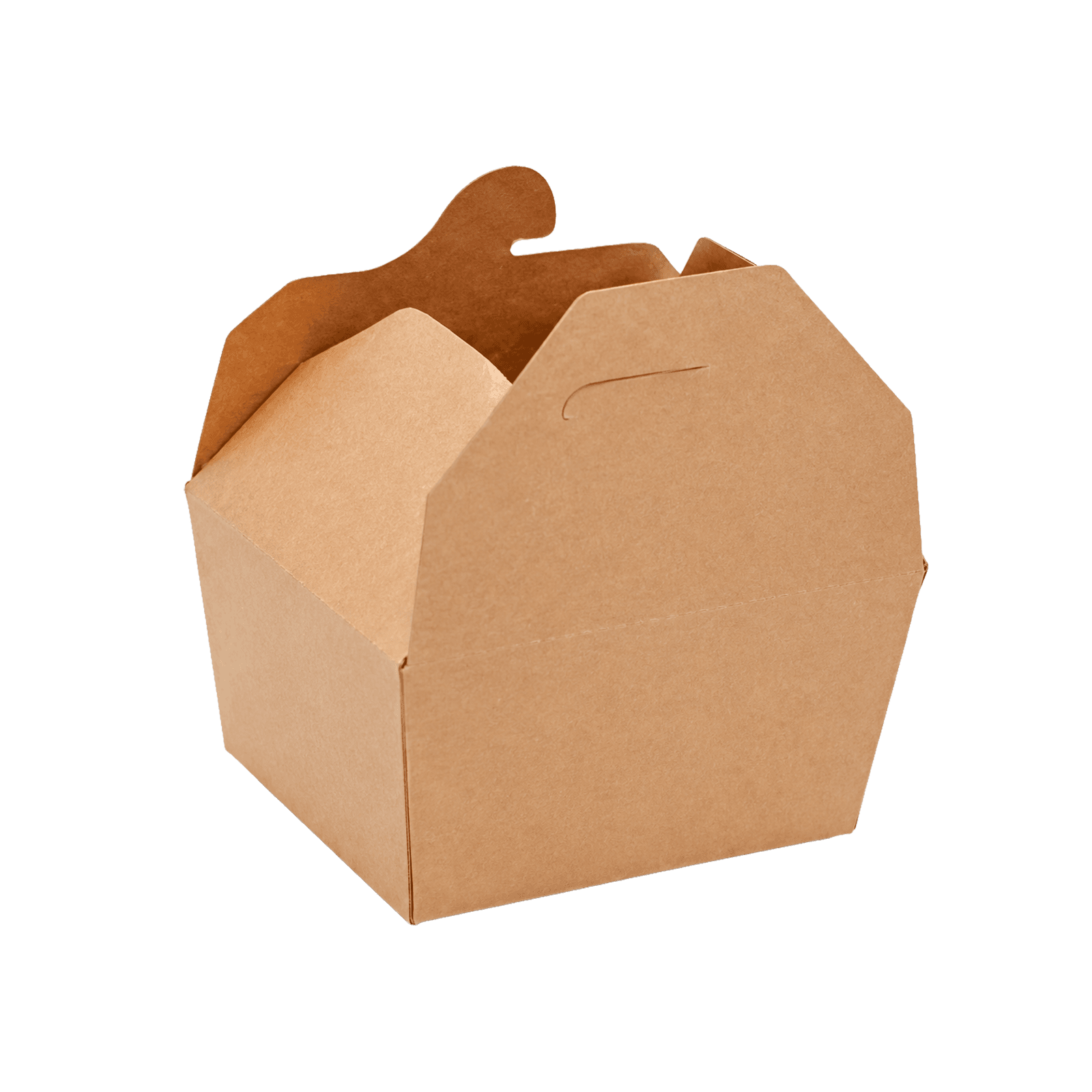

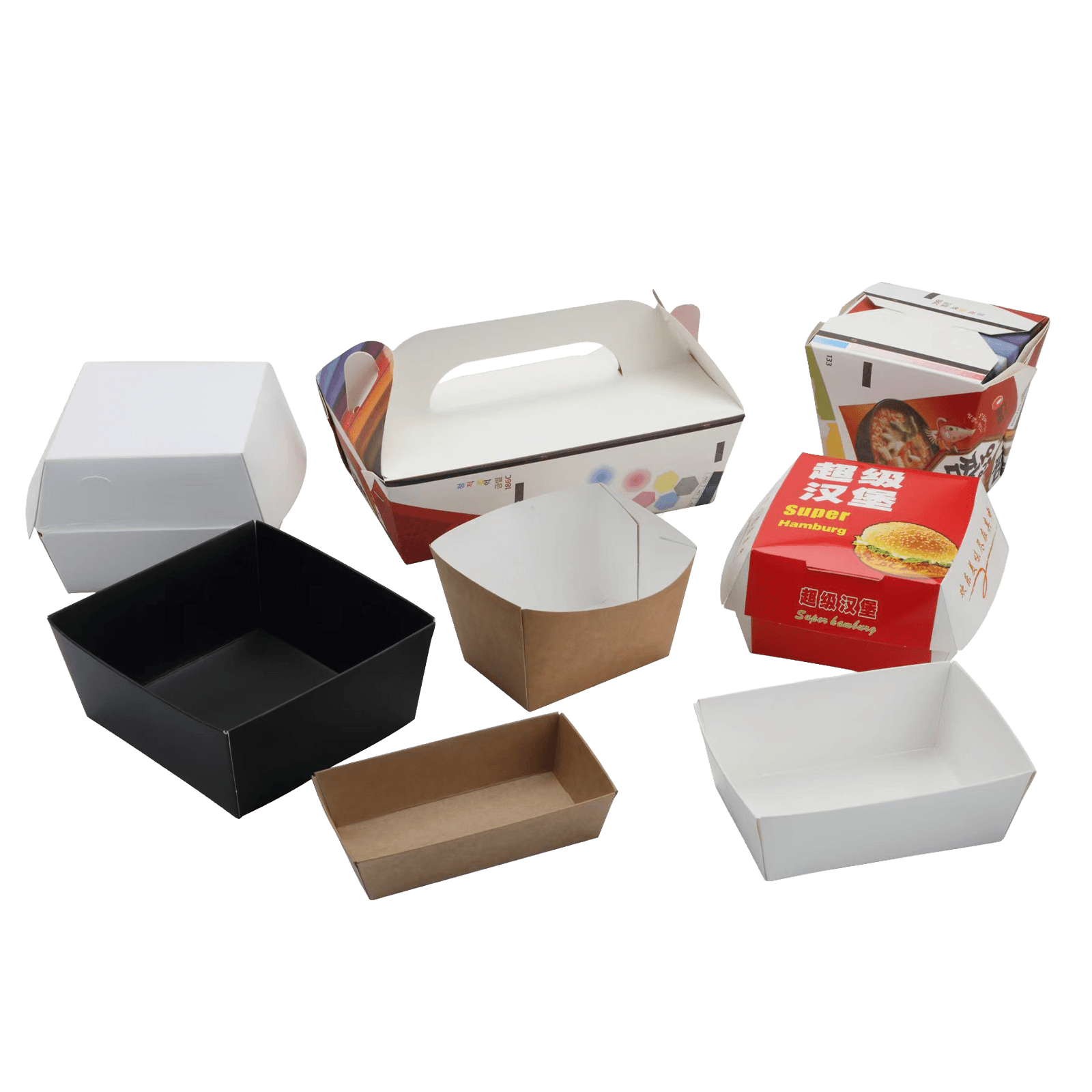

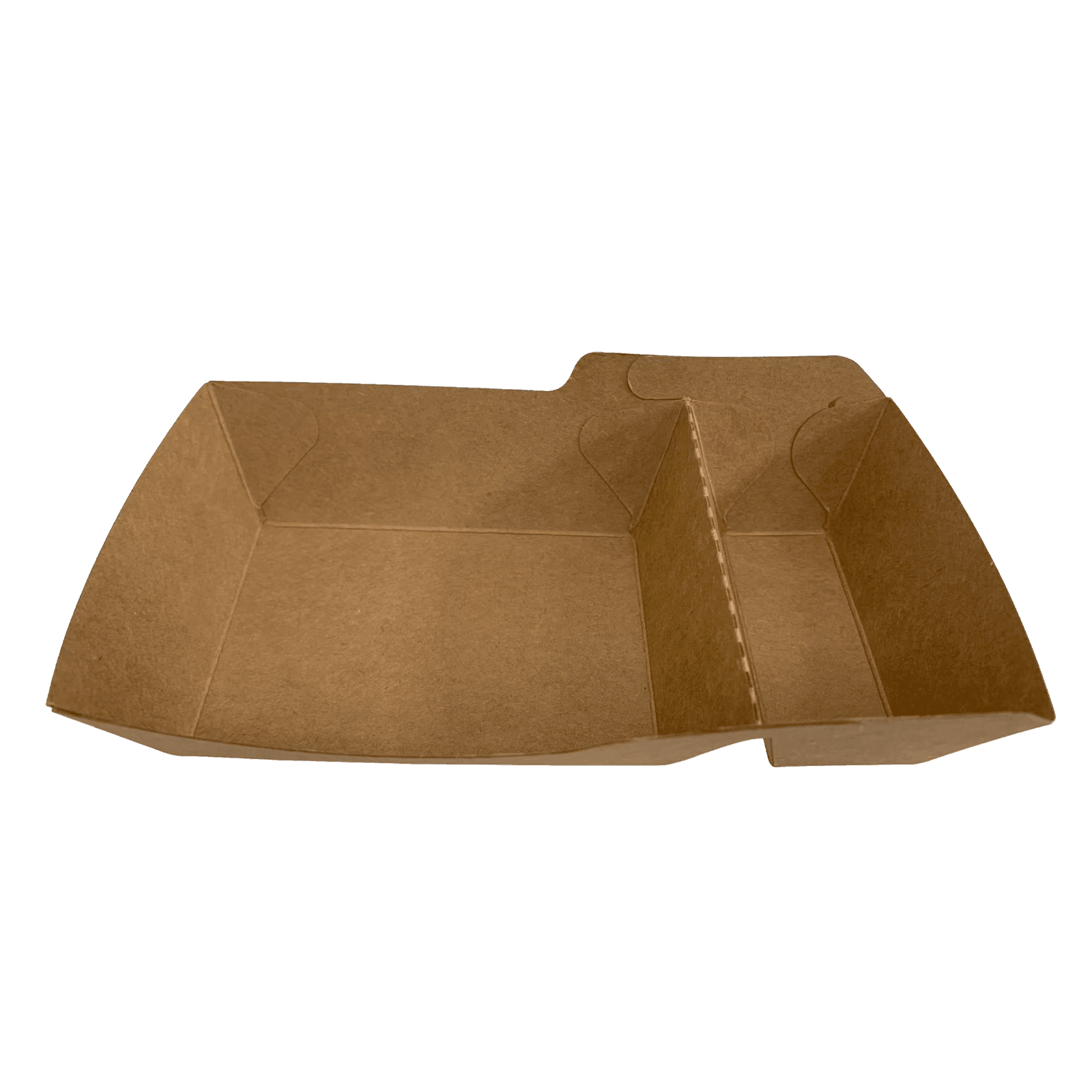

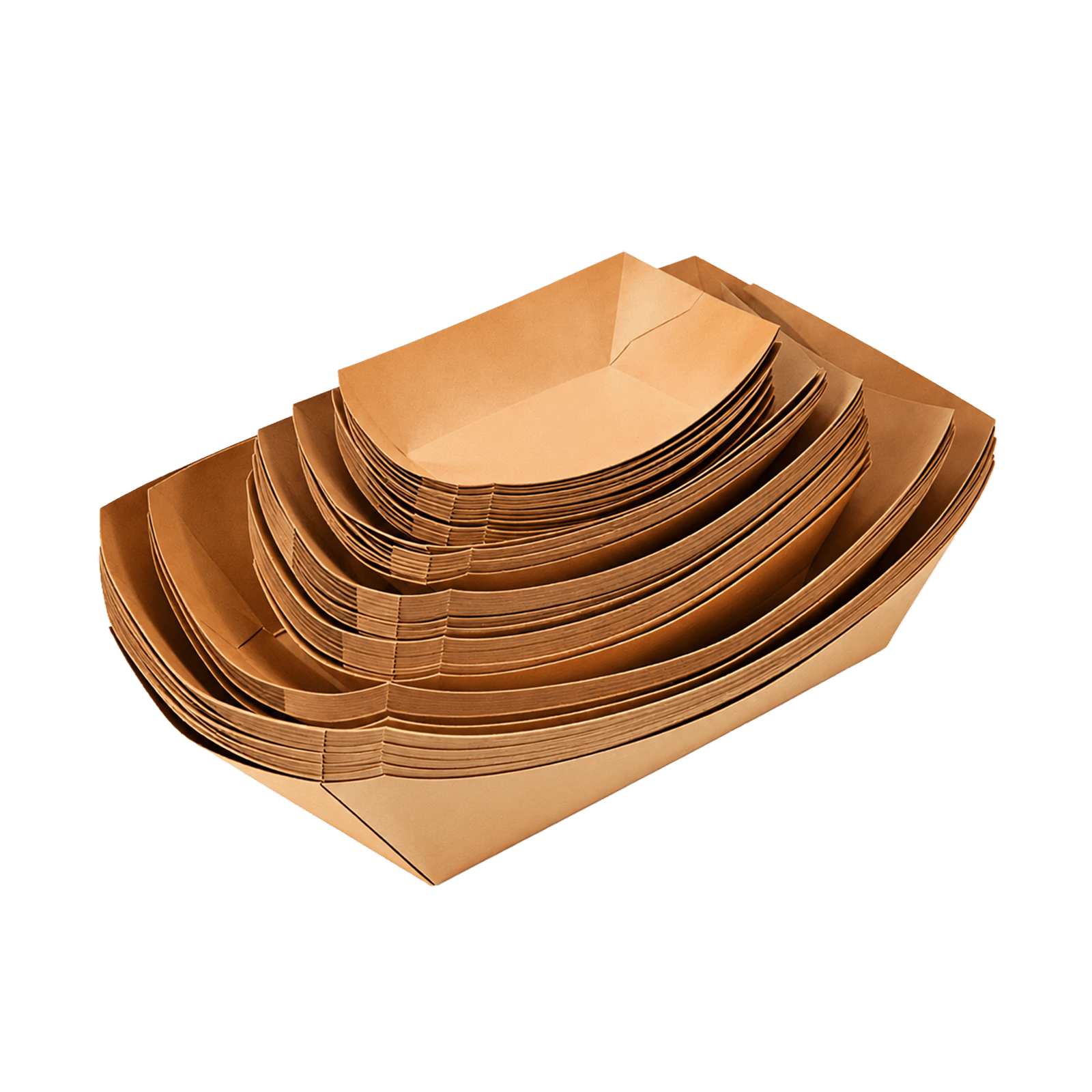

Products this machine can make
Send your product photo, dieline or sample. We will confirm the suitable mold and machine configuration.

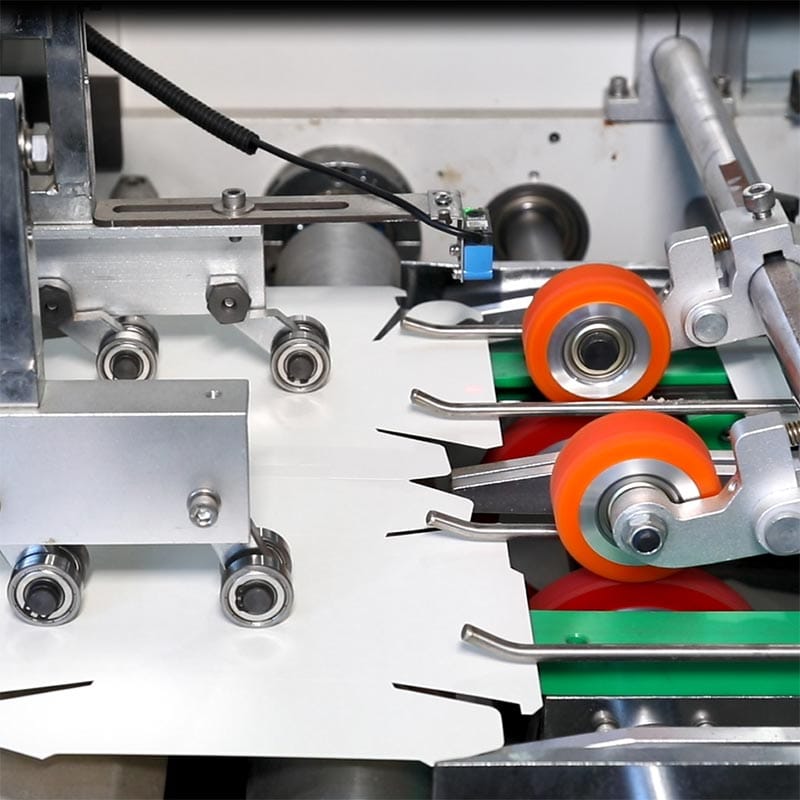

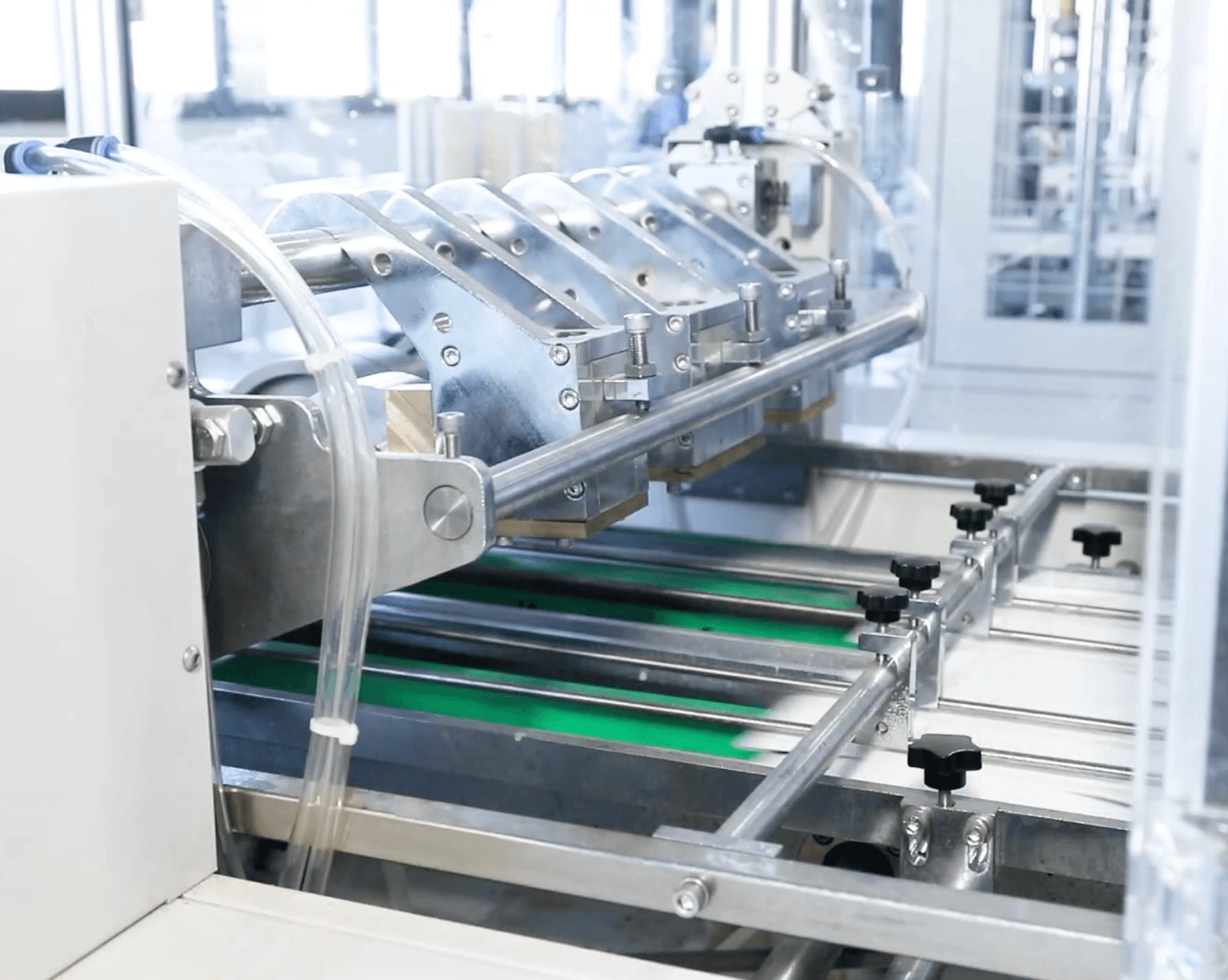

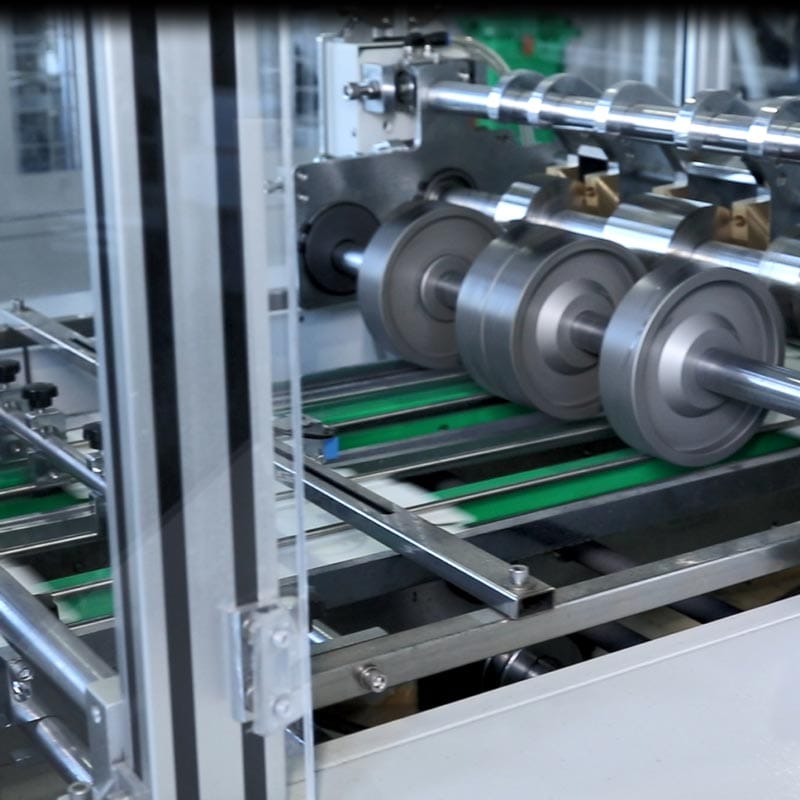

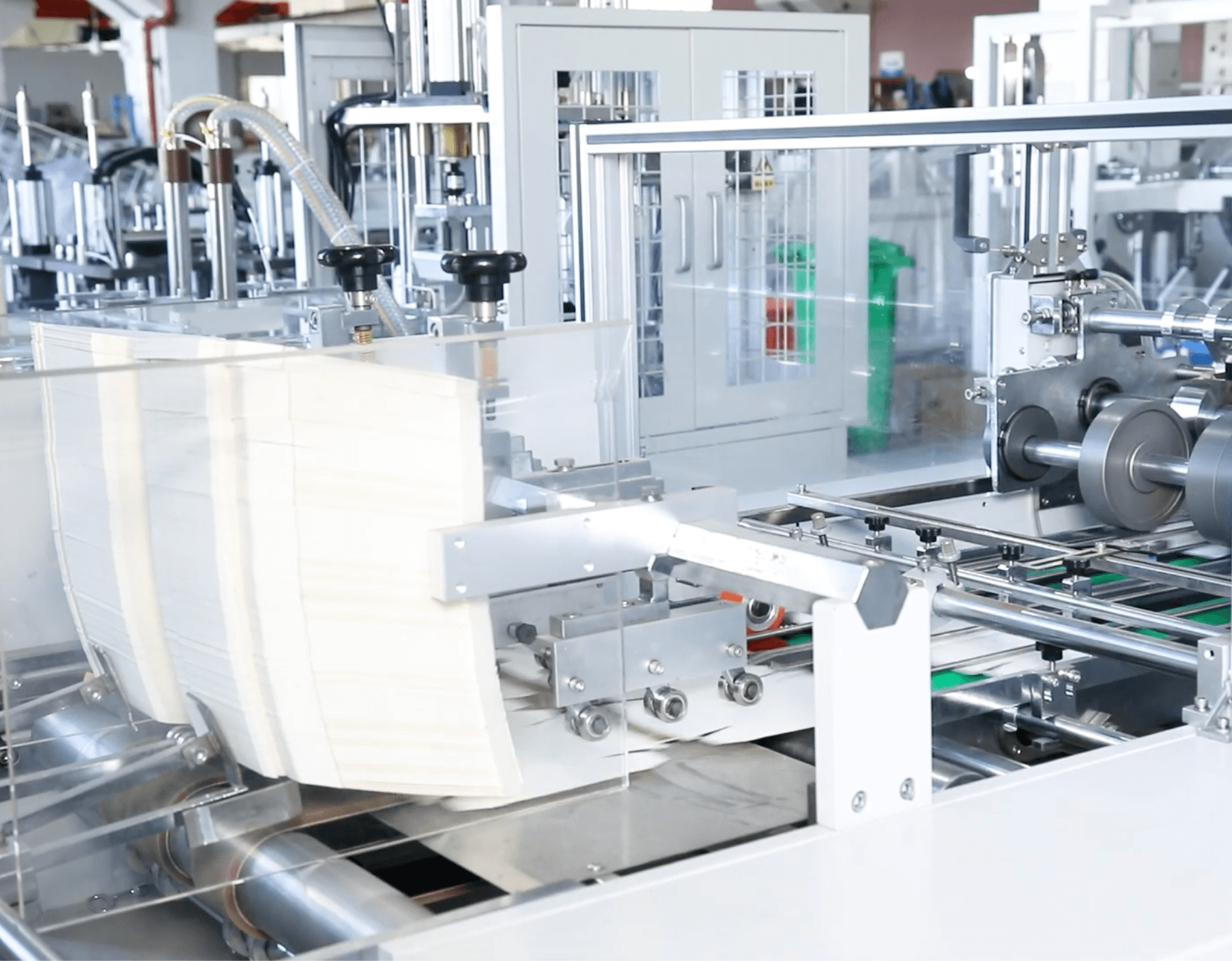

Equipment gallery
Four focused machine views for a quick, structured look at the complete equipment and key details.
Real machine-running video
Review the machine process before discussing your project.
Technical specifications
Final specifications, voltage, mold design and optional systems should be confirmed according to your product, material and required output.
Speed
30–160 pcs/min(1 Servo) | 30–300 pcs/min(4 Servo)
Paper Weight
180–400 g/m²
Paper Thickness
0.3–1.5 mm
Minimum Paper Size
120 × 120 mm
Maximum Paper Size
600 × 500 mm
Air Pressure
0.5 MPa
Voltage
380V
Current
12A(1 Servo) | 20A (4 Servo)
Total Power
2.5 kW(1 Servo) | 6.5 kW(4 Servo)
Frequency
50Hz / 60Hz
Machine Weight
1,400 kg
Machine Dimensions (L × W × H)
3500 × 1350 × 1500 mm
Delivery & project support
CHANGHAI coordinates the key steps between your requirements and successful machine delivery.
Production Updates
Share scheduled progress updates, images and important next-step information.
Material Testing
Coordinate trial production using customer material where practical.
Pre-Shipment Testing
Review real test videos and agreed acceptance items before shipment.
Delivery Coordination
Coordinate packing, shipping documents and after-sales communication.
