Double Wall Paper Cup Sleeve Making Machine CH-100
The CH-100 produces double wall cup sleeves for 2.5–16 oz cups at 90–110 pcs/min.
Double Wall Paper Cup Sleeve Making Machine
The CH-100 Double Wall Paper Cup Sleeve Making Machine is designed for efficient production of double wall paper cup sleeves for coffee, tea and other hot beverage packaging applications. It is suitable for cup sizes from 2.5 to 16 oz and works with 140–320 g/m² PE-coated paper or ripple paper, with a stable production speed of approximately 90–110 pieces per minute.

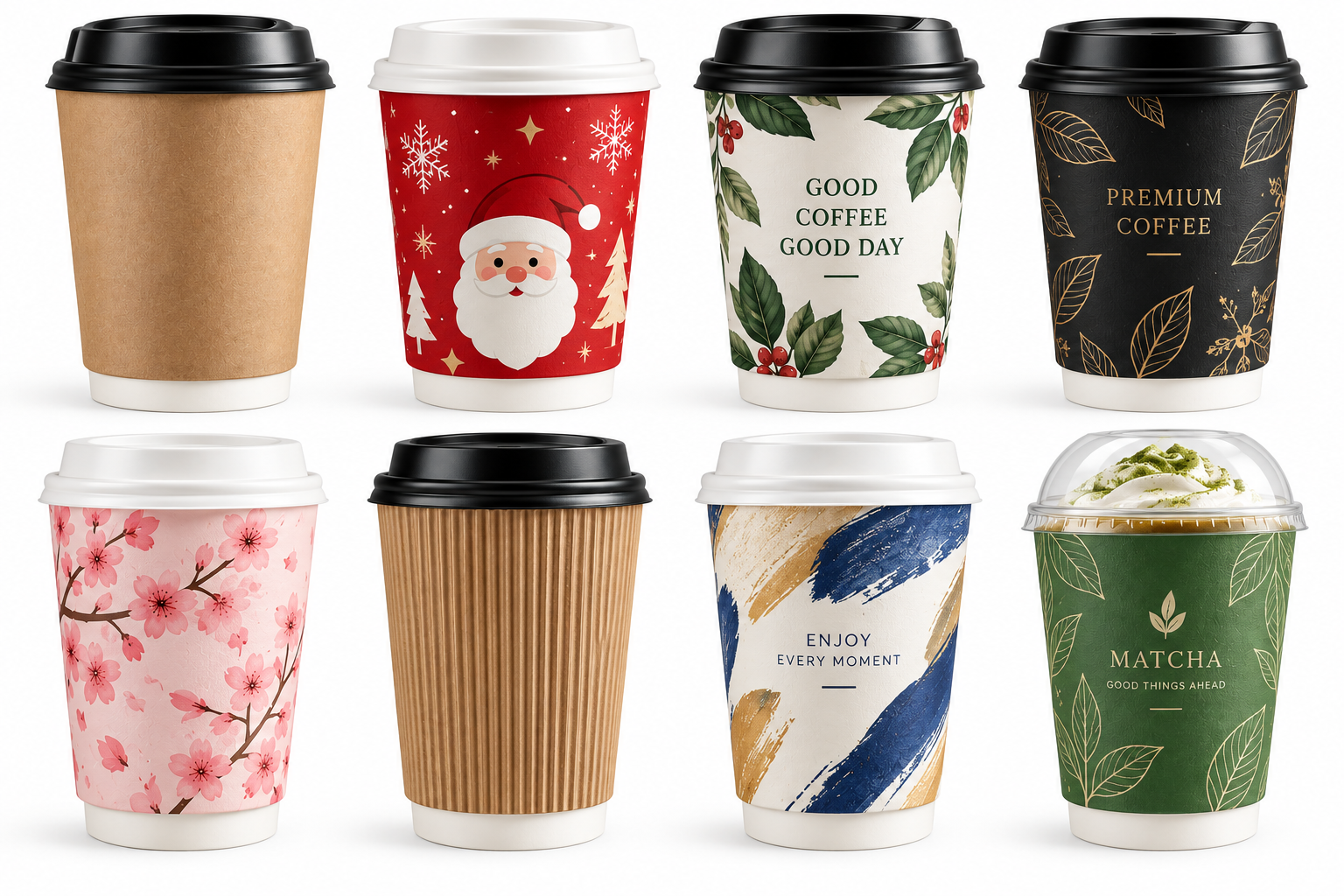

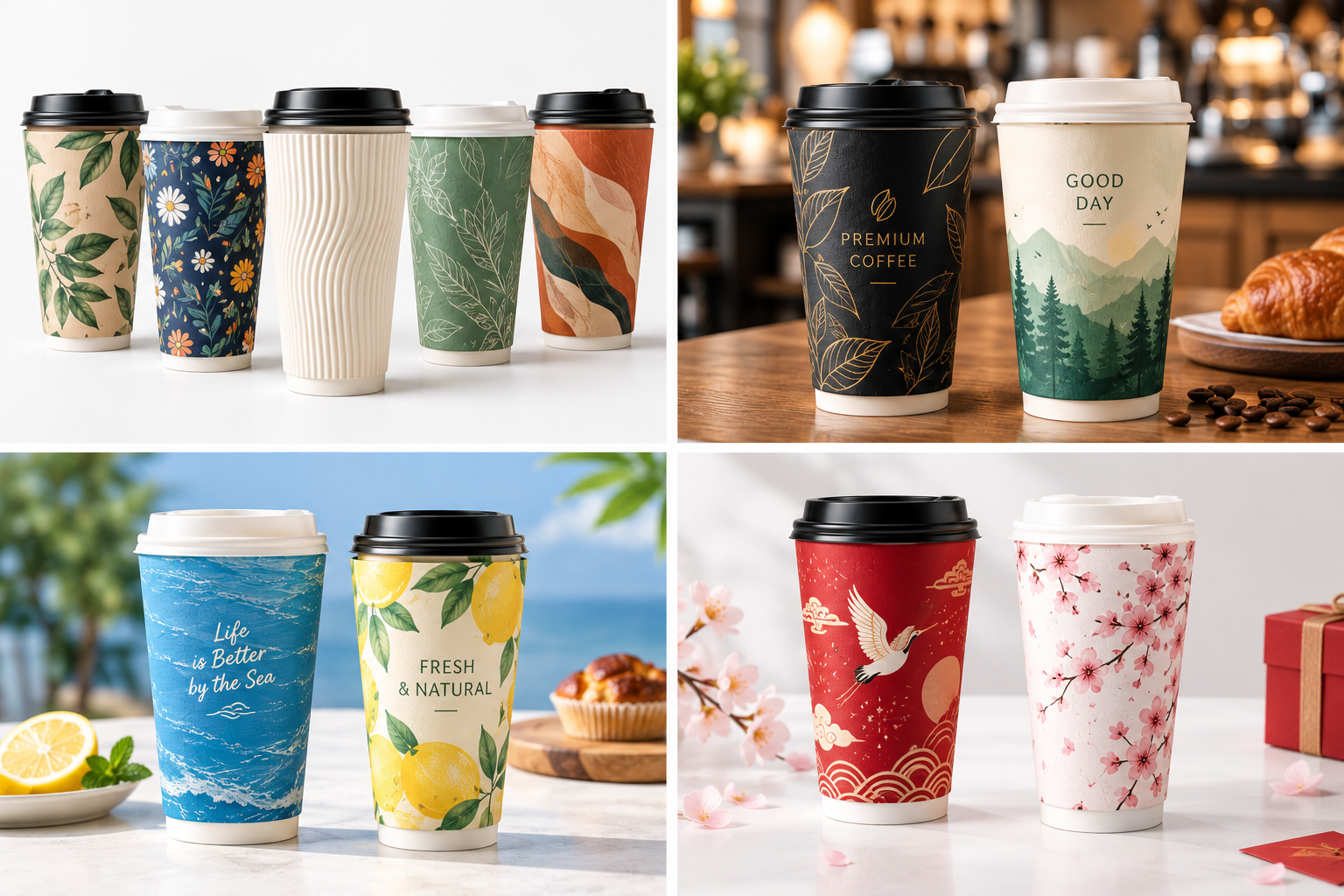

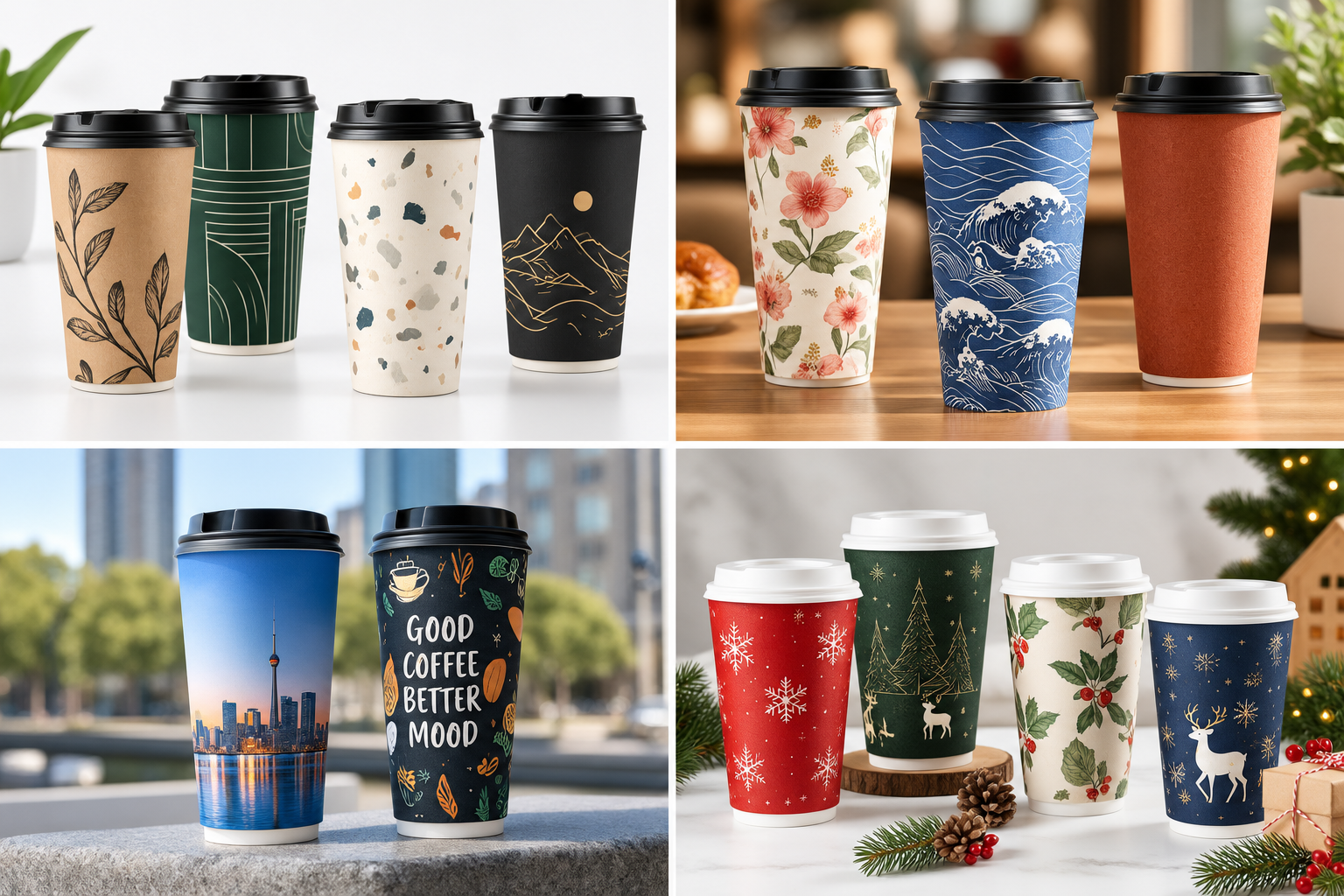

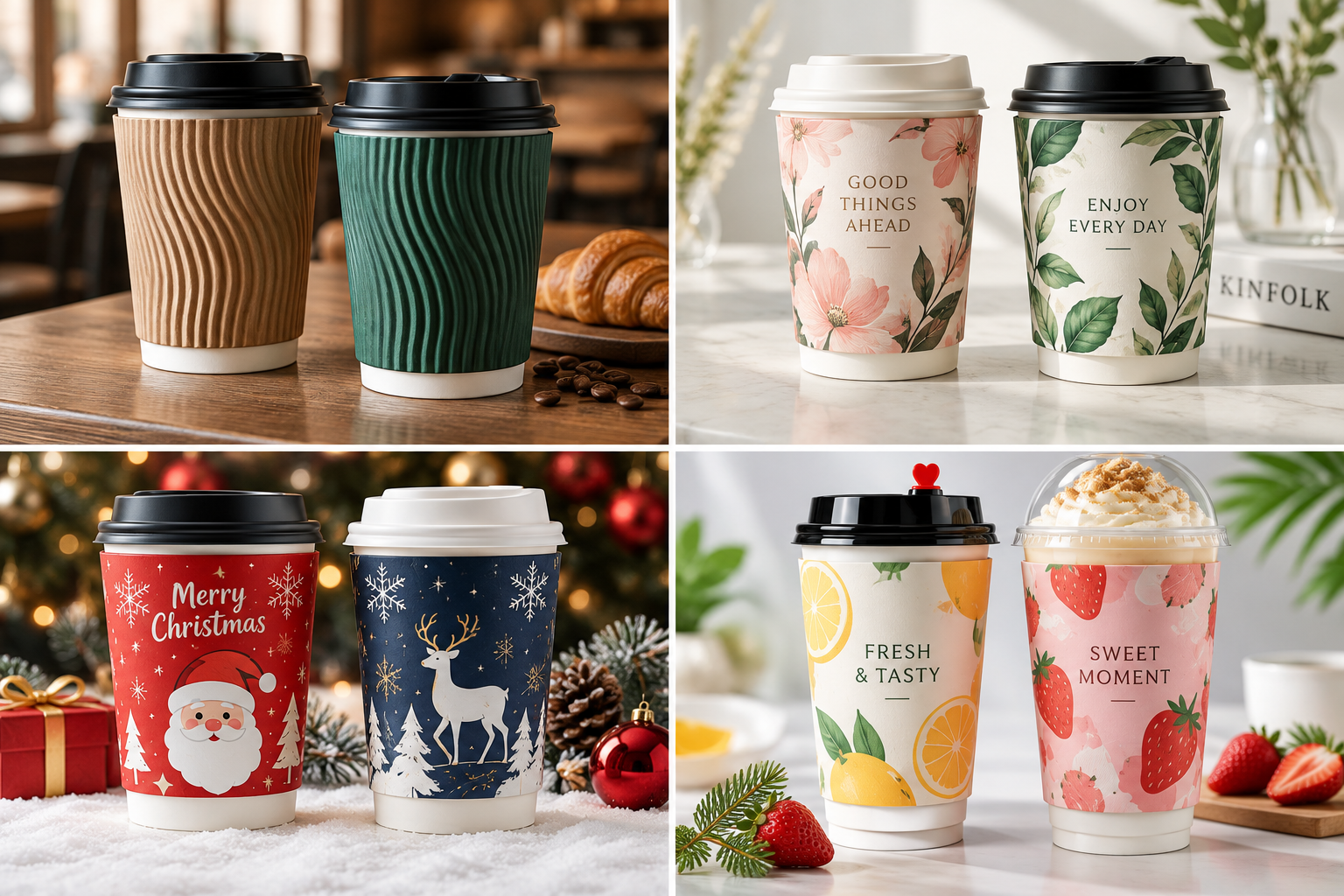

Products this machine can make
Send your product photo, dieline or sample. We will confirm the suitable mold and machine configuration.

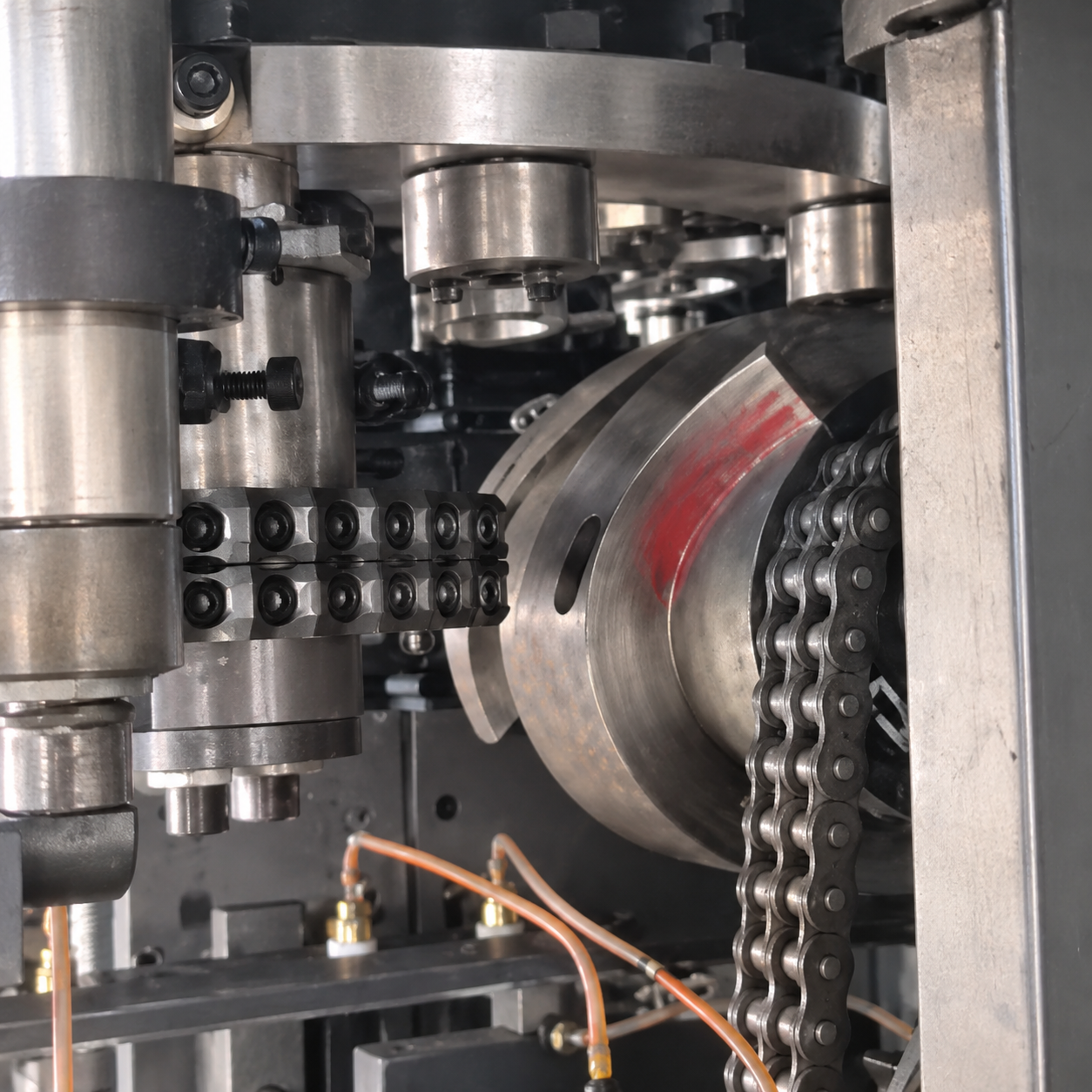

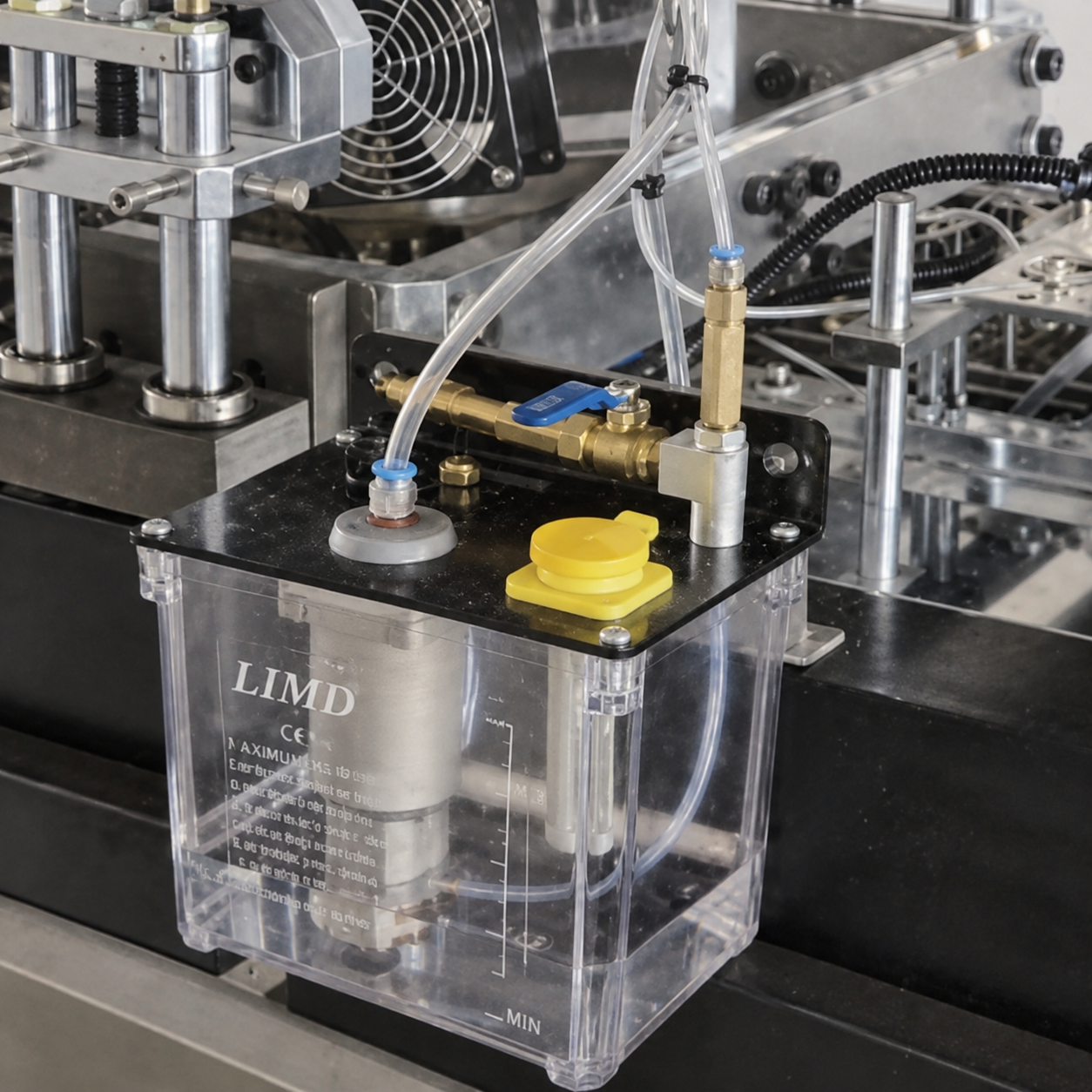

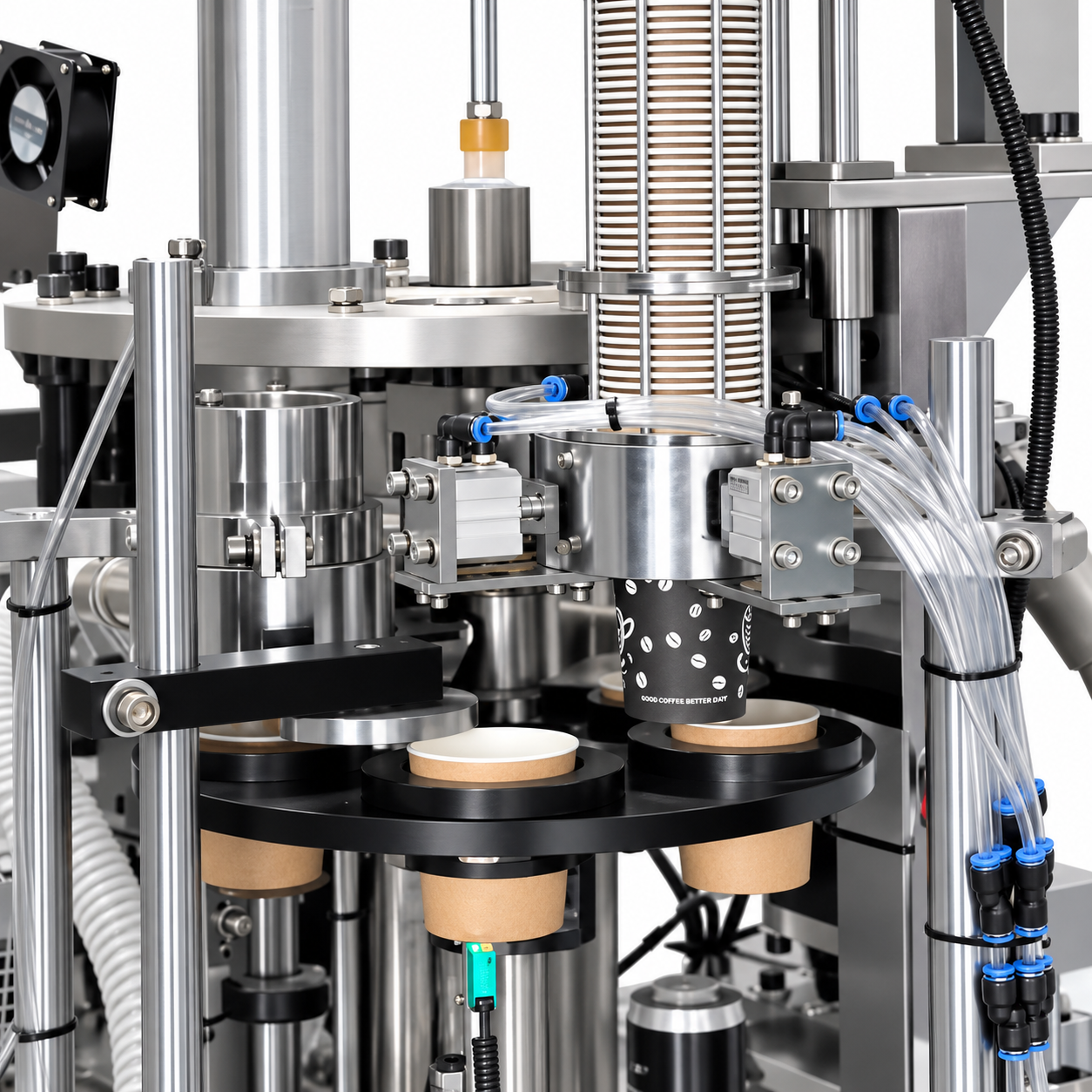

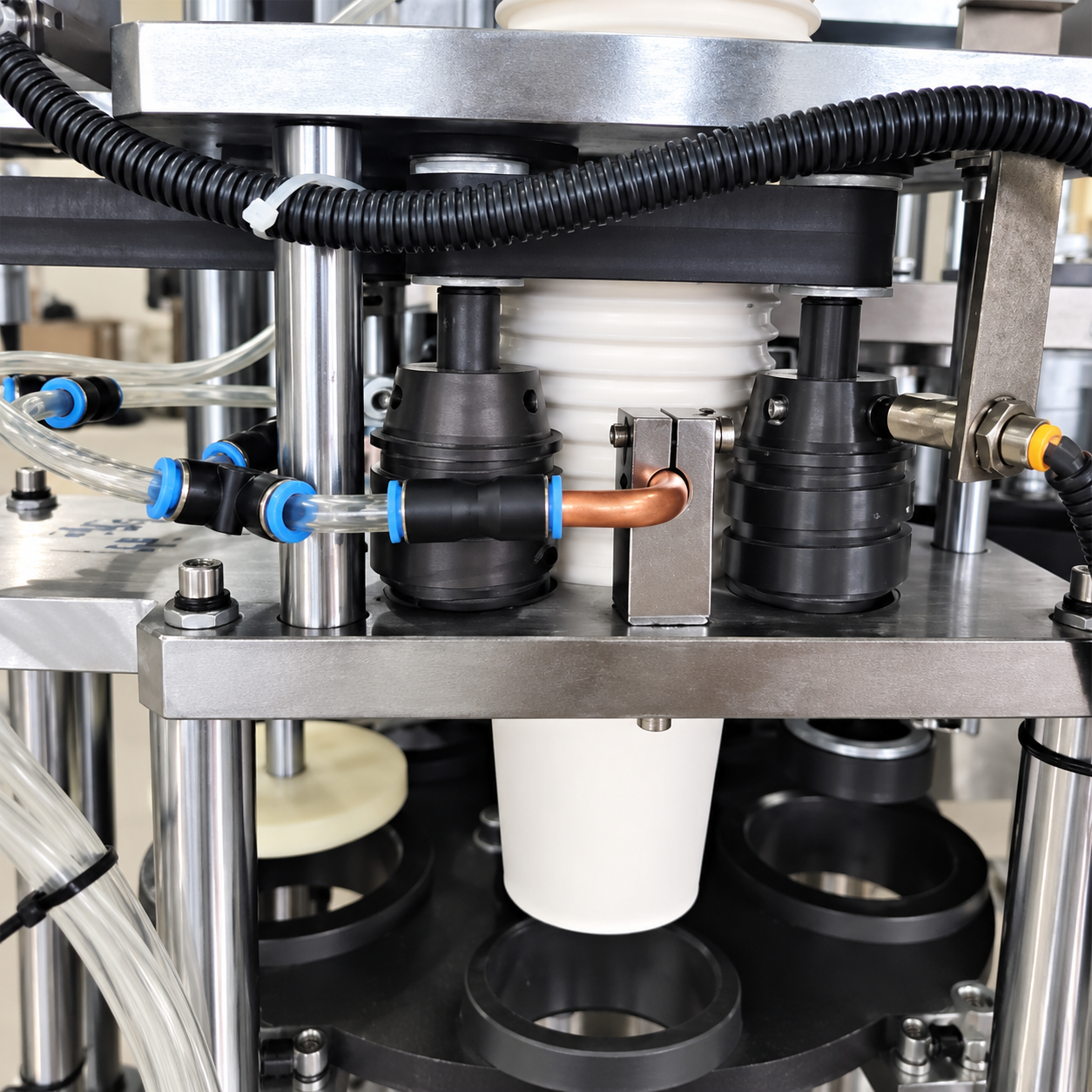

Equipment gallery
Four focused machine views for a quick, structured look at the complete equipment and key details.
Technical specifications
Final specifications, voltage, mold design and optional systems should be confirmed according to your product, material and required output.
Product Size
2.5–16 oz
Paper Material
140–320 g/m², PE Coated Paper Or Ripple paper
Speed
90–110 pcs/min
Power Source
380V/220V, 50/60HZ
Recommended Power
380V, 3 Phase
Heating Total Power
5 kw
Main Motor
1.5 kw
Total Power
7.5 kw/h
Weight
1600 kg
Overall Size
2230 * 1140 * 1800 mm
Air Pressure
<0.4MPa used for auto bottom paper feeding
Operator
1 operator can manage multiple machines.
Operation Space
About 3000 * 3000 mm
Note
Can be customized according to your requirements
Delivery & project support
CHANGHAI coordinates the key steps between your requirements and successful machine delivery.
Production Updates
Share scheduled progress updates, images and important next-step information.
Material Testing
Coordinate trial production using customer material where practical.
Pre-Shipment Testing
Review real test videos and agreed acceptance items before shipment.
Delivery Coordination
Coordinate packing, shipping documents and after-sales communication.
